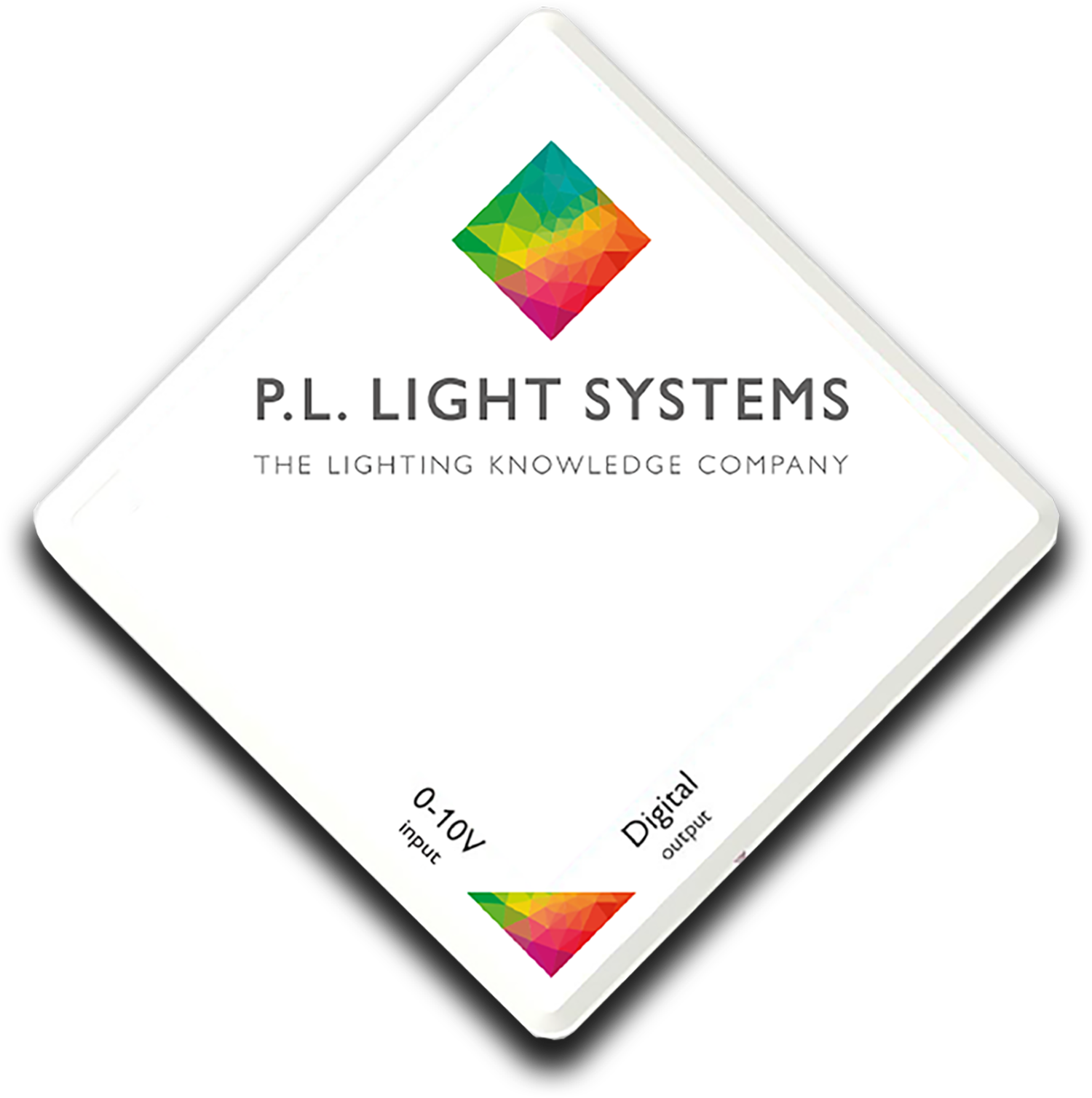

P.L. Light IQ Digital Converter
The P.L. Light IQ™ Digital Converter enables centralized control of up to 200 NXT-LP IQ luminaires through common 0-10V control systems. It converts a 0-10V analog signal into the digital signal your NXT-LP IQ fixtures read, so you can dim and schedule them from the control system you already run.
- up to 200 NXT-LP luminaires
- 4 lines per converter
- 0-10V analog input
- Works with GrowFlux, Trolmaster, and more
- Plug and play
- For NXT-LP IQ fixtures
0-10V analog in, digital out · up to 50 luminaires per line · up to 4 lines
Bring your HPS fixtures onto modern control
The Digital Converter sits between your 0-10V control system and your NXT-LP IQ luminaires, so you can dim and schedule a whole growing area from one signal.
Controls up to 200 luminaires
One converter drives as many as 200 NXT-LP IQ fixtures, spread across up to four lines of 50.
Works with your control system
It takes the 0-10V analog signal from common control systems, including GrowFlux and Trolmaster, and converts it for your fixtures.
Plug and play
A simple, plug-and-play device that drops into your existing lighting infrastructure, with no new control platform to learn.
Built for energy savings
Dim and schedule your HPS lighting to match your DLI target and trim energy use across the growing area.

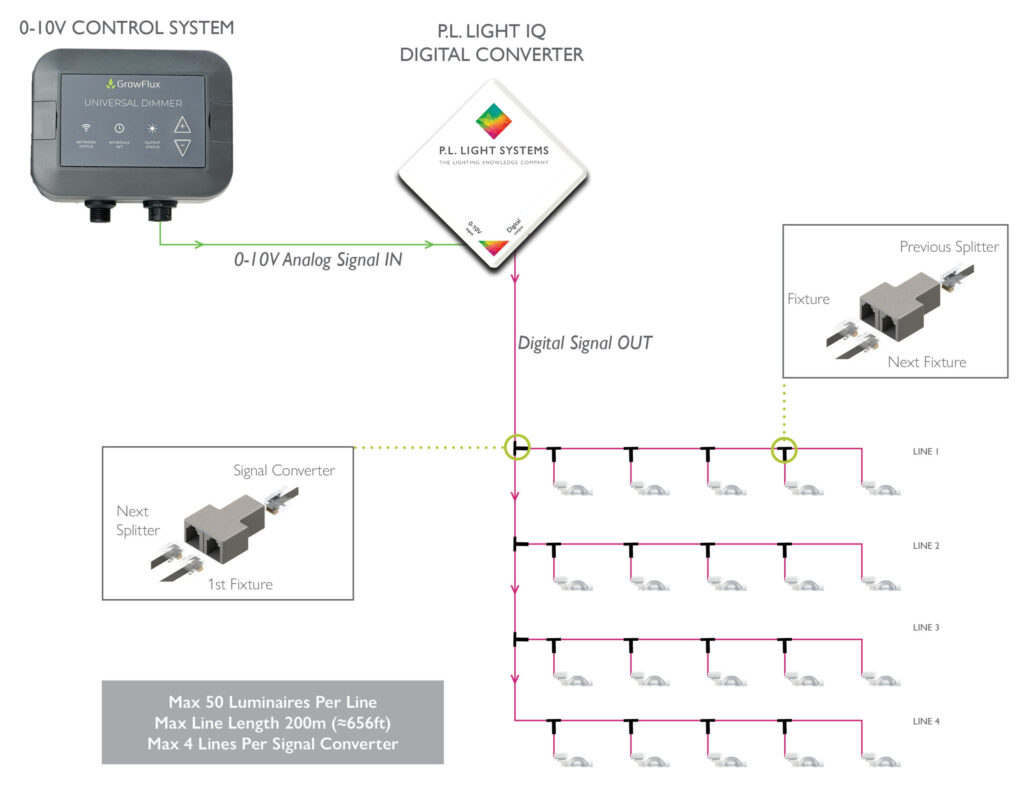

How it works
The Digital Converter takes the 0-10V analog signal from your control system, such as GrowFlux or Trolmaster, and converts it to the digital signal that NXT-LP IQ fixtures read, for seamless centralized control.
A single converter controls up to 200 fixtures across up to four lines:
- Up to 50 luminaires per line
- Up to 200 m (656 ft) per line
- Up to 4 lines per converter
P.L. Light IQ specifications
Capacity and compatibility
- Luminaires controlled
- Up to 200 NXT-LP IQ
- Lines per converter
- Up to 4
- Luminaires per line
- Up to 50
- Line length
- Up to 200 m (656 ft) per line
- Input
- 0-10V analog signal
- Output
- Digital signal for NXT-LP IQ fixtures
- Compatible control systems
- GrowFlux, Trolmaster, and other 0-10V systems
Fixtures must be NXT-LP IQ models. The standard NXT-LP is not controllable.
Specification data and manuals
P.L. Light IQ questions, answered
Which fixtures work with the Digital Converter?
It works with the NXT-LP IQ, the control-enabled version of the NXT-LP luminaire. The standard NXT-LP is not controllable. Your regional sales manager can confirm which version you have.
How many fixtures can one converter control?
Up to 200 NXT-LP IQ fixtures, across up to four lines, with a maximum of 50 fixtures and 200 m (656 ft) per line.
Do I need a specific control system?
No. The converter accepts a 0-10V analog signal from common control systems, including GrowFlux and Trolmaster, so you can keep the system you already run.
Bring your HPS growing area onto one control signal
Tell us your fixtures and how you want to control them. Your regional sales manager will confirm compatibility and size the converter setup.
