MeshIQ Seamless, wireless lighting control
MeshIQ delivers precision wireless lighting control for controlled-environment growers, tuned for optimal plant growth and energy savings. It plugs into your LED luminaires and takes its signal from the climate computer you already run.
- ≤ 1000 ft wireless range
- LoRaWAN wireless mesh
- 5-year warranty
- HLP compatible
- Modbus TCP/IP
- IP67 gateway
915 MHz LoRaWAN mesh · Modbus TCP/IP · 100 to 240V · 4 independent channels
Control the whole facility, zone by zone
MeshIQ layers a wireless mesh over your existing control system, so you can schedule and dim luminaire groups per zone without running new control cable to every fixture.
Wireless mesh network
A self-healing LoRaWAN mesh reaches every luminaire in the control area, with the gateway covering up to 1000 feet.
Integrates with your climate computer
MeshIQ takes the HLP signal from the climate computer you already run, such as Priva or Hoogendoorn, over Modbus TCP/IP.
Zonal remote scheduling
Every receiver is individually programmable, so you can build luminaire groups and schedule each zone on its own recipe.
Built for energy savings
Dim and schedule lighting to match your DLI target and off-peak energy windows across the whole facility.
How MeshIQ works
MeshIQ sits between the control system you already run and the lights, adding a wireless layer:
- Your climate computer, with an HLP protocol module enabled, sends a control signal to the MeshIQ Industrial PC over the supplied ethernet cable or your own fibre to Modbus TCP/IP standards.
- The Industrial PC passes the Modbus TCP/IP signal to the MeshIQ Gateway.
- The Gateway converts it to a digital signal and broadcasts it wirelessly to the MeshIQ receivers (dongles) in the luminaires, forming a LoRaWAN mesh across the control area.
- Each receiver is individually programmable, so luminaires can be grouped for zonal control.
MeshIQ Industrial PC
The central hub of the system. It receives the HLP control signal from your climate computer, hosts the network server, and connects to the MeshIQ Gateway. Engineered for industrial environments for efficient, reliable operation.

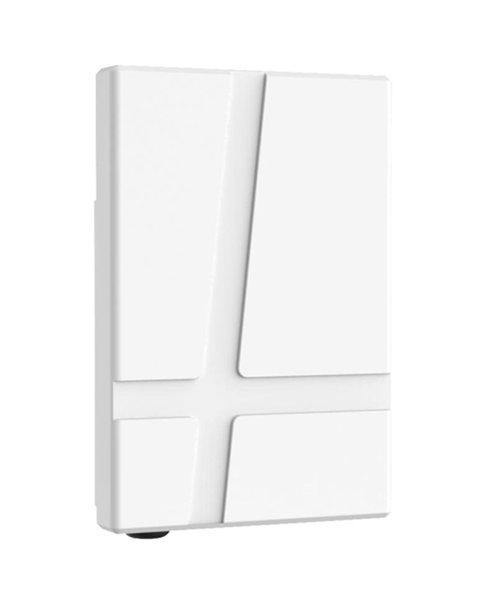

MeshIQ Gateway
A weatherproof device that broadcasts the wireless control signal to the luminaires. With LoRaWAN technology and an IP67-rated enclosure, the gateway keeps communication reliable indoors or outdoors, even in harsh conditions.

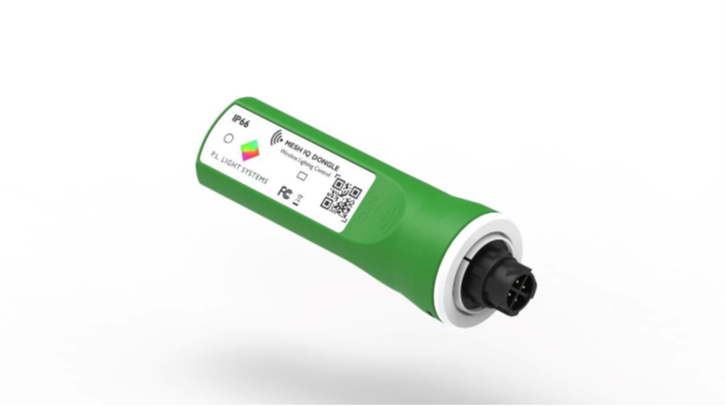

MeshIQ Dongle
A compact receiver that plugs directly into a supporting LED luminaire, bringing it onto the wireless network over LoRa. Existing luminaires join the LoRaWAN mesh for remote, precise control with no new control cabling to each fixture.

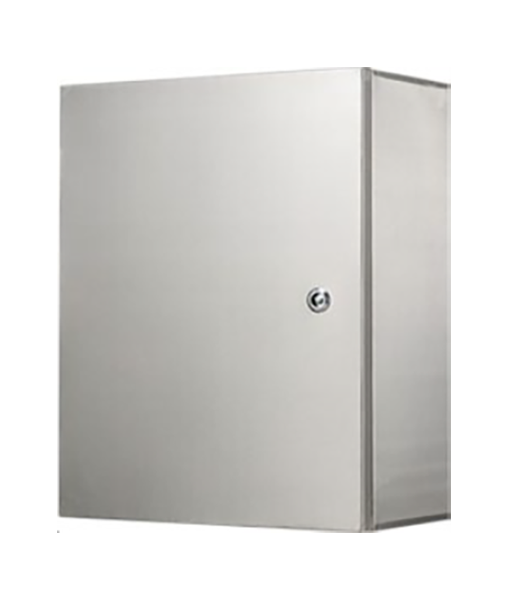

Control Cabinet
A robust stainless steel cabinet that houses and protects the control devices from the growing environment. Built to keep the system running reliably in demanding conditions.
MeshIQ technical specifications
Technical specifications
- Electrical
- 100 to 240V, less than 4.8W
- Control protocol
- Modbus TCP/IP and LoRaWAN
- Radio frequency
- 915 MHz
- Wireless range (gateway)
- Up to 1000 ft (305 m)
- Transmitting power
- Less than 30 dBm
- Independent channels
- 4
- IP rating (dongle / gateway)
- IP66 / IP67
Specifications accurate to plus or minus 10 percent.
Environment and warranty
- Operating temperature
- 0 to 40 °C (50 to 104 °F)
- Installation
- Climate-controlled rooms
- Warranty
- Limited 5-year warranty from the date of invoice
MeshIQ dimensions
Component dimensions
Dimension drawings for each MeshIQ component are shown below. Full measurements are in the technical specifications.

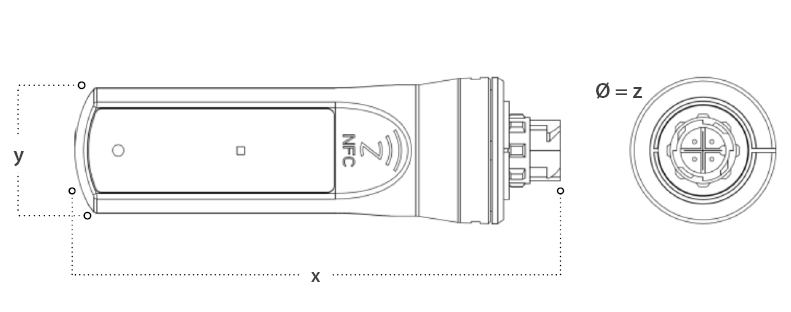

Dongle
- Length
- 5.05 in (128.3 mm)
- Width
- 1.30 in (33.0 mm)
- Diameter
- 1.52 in (38.5 mm)
- Weight
- 0.15 lb (66 g)

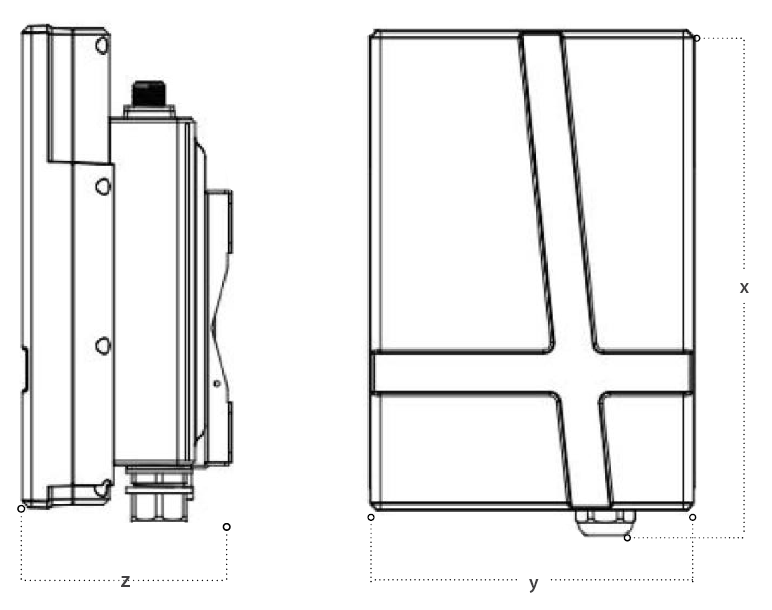

Gateway
- Length (x)
- 10.04 in (255 mm)
- Width (y)
- 6.50 in (165 mm)
- Height (z)
- 3.58 in (91 mm)
- Weight
- 6.1 lb (2.8 kg)

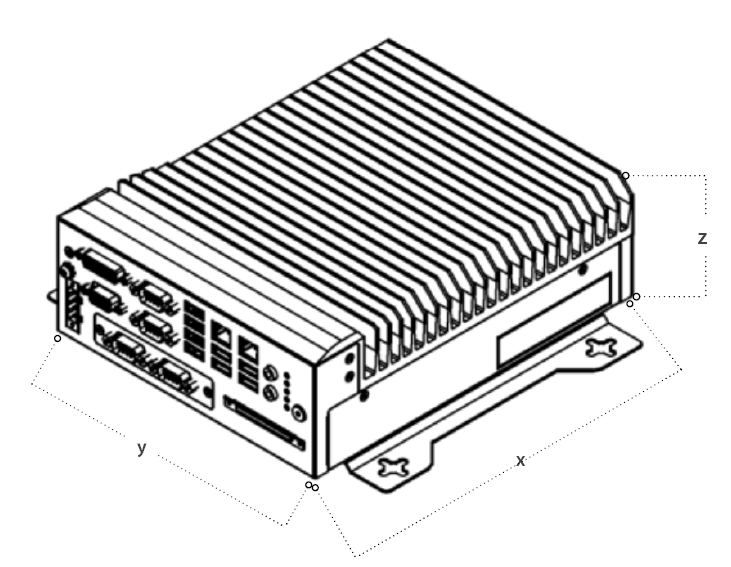

Industrial PC
- Length (x)
- 9.06 in (230 mm)
- Width (y)
- 7.56 in (192 mm)
- Height (z)
- 3.07 in (78 mm)
- Weight
- 6.1 lb (2.8 kg)
MeshIQ questions, answered
Does MeshIQ replace my climate computer?
No. MeshIQ works with the climate computer you already run. It takes the HLP control signal from your computer over Modbus TCP/IP and delivers it wirelessly to the lights.
How far does the wireless signal reach?
The gateway reaches up to 1000 feet (305 m), and the LoRaWAN mesh extends coverage across the control area. Larger facilities can add gateways to cover more ground.
Do I need new wiring to each fixture?
No. The MeshIQ dongle plugs directly into a supporting LED luminaire and joins the wireless mesh, so there is no new control cabling to each fixture.
Which luminaires work with MeshIQ?
Supporting P.L. Light Systems LED luminaires accept the MeshIQ dongle. Your regional sales manager can confirm compatibility for your fixtures.
Bring your whole facility onto one wireless control layer
Tell us your growing areas, fixtures, and control system. Your regional sales manager will size MeshIQ and map the gateway coverage to match.
