GrowFlux Secure, centralized wireless LED grow lighting control
GrowFlux gives you secure, centralized digital control of your grow lighting, with remote control, scheduling, and monitoring. Every P.L. Light Systems LED luminaire is compatible, so you get plug-and-play remote management, PAR-sensor control, and energy analytics for a facility of any size.
- up to 50 luminaires per dimmer
- 10 km+ meshed network reach
- AES128 encrypted
- PAR-sensor control
- Energy analytics
- iOS, Android, and web
902 to 928 MHz wireless mesh · AES128 and TLS encrypted · IP66 dimmer
Run your whole facility from anywhere
GrowFlux layers a secure wireless mesh over your LED lighting, then puts scheduling, dimming, and monitoring in one app so you can manage a growing area or a whole facility from any device.
Wireless mesh control
A self-healing GrowFlux mesh reaches every luminaire, with 500 feet line of sight per hop and networks that span 10 km or more across a facility.
Manage from any device
iOS and Android apps plus a browser interface let you schedule, dim, and monitor from anywhere. Zone management reconfigures a facility of any size.
PAR-sensor control and analytics
Control to a PAR target and track energy use with built-in analytics, so you can tune each growing area to its DLI and energy envelope.
Secure and resilient
RF data is AES128 encrypted and the app layer is TLS encrypted, with no inbound connections. The platform keeps running through connectivity loss and power failures.
How GrowFlux works
GrowFlux adds a secure wireless layer to your LED lighting in three parts:
- A Universal Dimmer on the luminaires controls up to 50 lights and joins a self-healing wireless mesh.
- An Access Point bridges that mesh to the internet over Ethernet for remote management and scheduling.
- The GrowFlux app and cloud give you scheduling, PAR-sensor control, zone management, and energy analytics from any device.
Without an Access Point, the dimmer still runs with local pushbutton control.

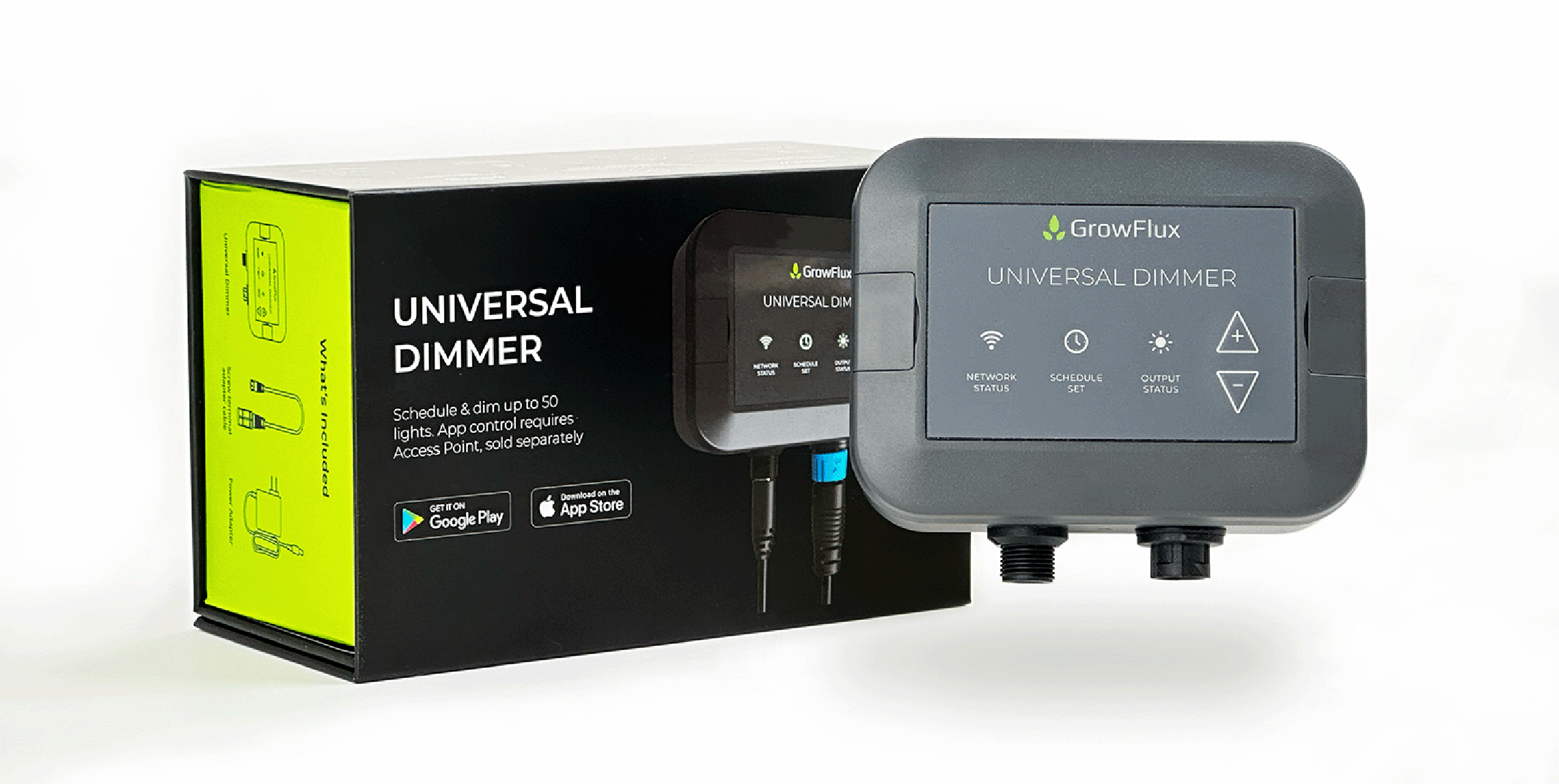

GrowFlux Universal Dimmer
Schedules and dims up to 50 luminaires and meshes automatically with nearby GrowFlux devices. Rated IP66 for the growing environment, with pushbutton control on the unit and full app control once an Access Point is added.
The kit includes:
- Universal Dimmer
- Screw-terminal adapter cable
- Power cord with 120V plug and power supply adapter

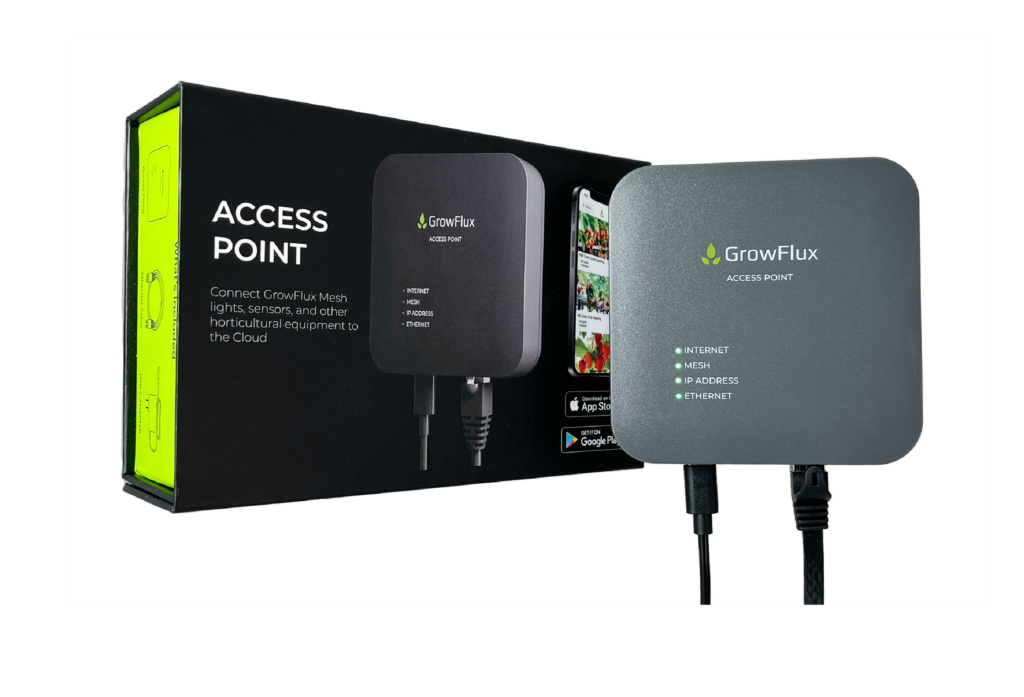

GrowFlux Access Point
Bridges the GrowFlux mesh to the internet over Ethernet, unlocking remote management and scheduling through the app and cloud. Uses Bluetooth for initial setup and installs firmware updates over the air.
The kit includes:
- Access Point
- Ethernet cable
- Power cord with 120V plug and power supply adapter

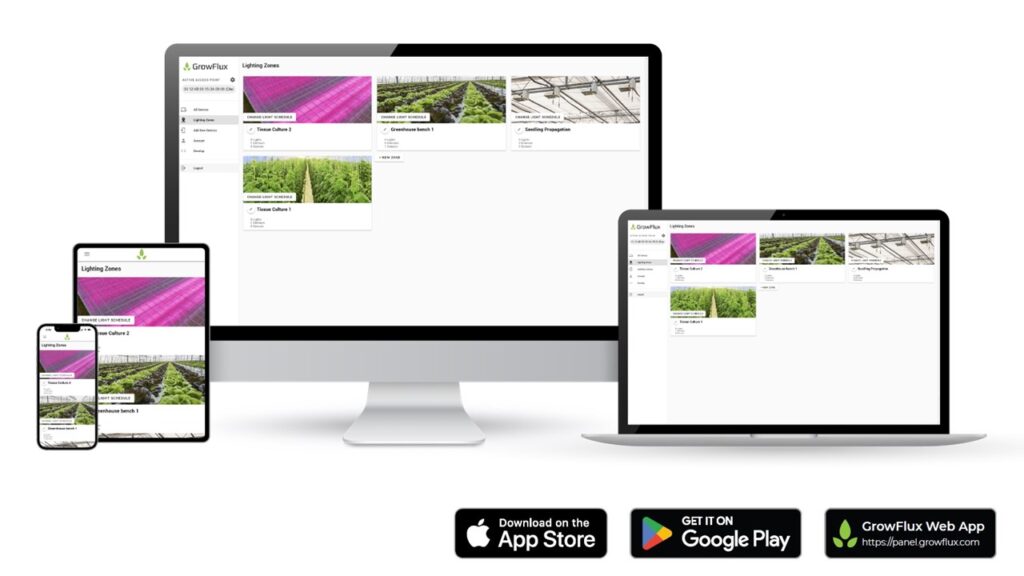

Manage from the GrowFlux app
With iOS and Android apps and a browser interface, you can manage and control your farm from any device. Zone management in the GrowFlux cloud lets growers reconfigure facilities of any size, and every layer is engineered for the reliability the CEA industry needs, keeping operations running through connectivity loss and power failures.
GrowFlux technical specifications
Universal Dimmer
- Voltage input
- 15 to 24 VDC
- Current consumption
- 320 mA max at 15 VDC; 220 mA max at 24 VDC
- Wireless protocol
- GrowFlux Mesh (standards-based wireless mesh)
- Meshing
- Automatic self-healing mesh via the nearest always-on device
- Wireless frequency
- 902 to 928 MHz (North America)
- Wireless range
- 500 ft line of sight, 300 ft indoors; 10 km+ with meshing
- Radio power
- Up to +12 dBm
- Antenna
- 2.0 dB high-gain internal antenna
- Security
- AES128 RF, TLS app layer, no inbound connections
- Operating temperature
- -40 to 60 °C (-40 to 140 °F)
- Luminaires supported
- Up to 50 (actual quantity may vary by product)
- Output control voltage
- 0.00 to 10.00 VDC (LED control)
- Source / sink current
- 50 mA, supports sink and source dimming
- Output voltage ripple
- 50 mV max
- Dimming resolution
- 8-bit
- Wireless channels
- 50 channels with automatic channel hopping
- Ingress protection
- IP66
- Dimensions
- 3.94 x 3.35 x 1.387 in (100 x 85 x 35 mm)
- Weight
- 0.31 lb (0.15 kg)
Without an Access Point the dimmer runs with local pushbutton control only. Ripple measured on simulated 0 to 10V loads; performance may vary by luminaire. All specifications correct at the time of publication.
Access Point
- Voltage input
- 5 VDC via USB-C
- Current consumption
- 400 mA max
- Wireless protocol
- GrowFlux Mesh (based on 802.15.4)
- Meshing
- Automatic self-healing mesh via the nearest always-on device
- Wireless frequency
- 902 to 928 MHz and 2.4 GHz (North America)
- Wireless range
- 500 to 1000 ft line of sight, 300 ft indoors; 10 km+ with meshing
- Radio power
- Up to +12 dBm
- Antenna
- Internal sub-GHz antenna
- Security
- AES128 RF, TLS app layer, no inbound connections
- Operating environment
- -20 to 60 °C; keep dry, away from moisture and dust
- Backup battery
- Internal user-serviceable CR-2032 for date and time
- Bluetooth
- Internal radio for initial setup
- Firmware updates
- Over the air via the GrowFlux app
- Compatibility
- All North America GrowFlux products and devices marked Powered by GrowFlux
- Dimensions
- 3.93 x 3.93 x 0.96 in (100 x 100 x 24.5 mm)
- Weight
- 0.22 lb (0.10 kg)
Requires an Ethernet internet connection for remote management and scheduling. All specifications correct at the time of publication.
Specification data and manuals
GrowFlux questions, answered
Do I need an Access Point?
The Access Point connects the wireless mesh to the internet for remote management and scheduling through the GrowFlux app and cloud. Without one, the Universal Dimmer still works with local pushbutton control.
Which luminaires work with GrowFlux?
Every P.L. Light Systems LED luminaire is compatible with GrowFlux wireless controls. GrowFlux also works with third-party products marked “Powered by GrowFlux”.
How many luminaires can one dimmer control?
A single GrowFlux Universal Dimmer controls up to 50 luminaires. Larger growing areas add dimmers, which mesh together automatically.
How far does the wireless signal reach?
Each hop covers about 500 feet line of sight, or 300 feet indoors through most walls. The self-healing mesh links devices together and can span networks over 10 km (6 miles).
Bring your growing areas onto one wireless control platform
Tell us your growing areas, fixtures, and how you want to schedule them. Your regional sales manager will size a GrowFlux setup to match.
