ParFX Ultra LED Top Lighting Family
Designed to deliver ultra-high light output and unrivaled uniformity, the ParFX™ Ultra is a high-performance LED top-lighting solution that provides the ultimate balance of power and precision.
- up to 5180 µmol/s PAR
- up to 4.26 µmol/J efficacy
- 1 to 4 spectrum channels
-
-
- IP66
Four products: Lite / Ultra / Plus / Max · fixed or dynamic spectrum · 0-10V and digital dim to off · L90B5 at 50,000 hours
Power meets precision, in every product
The ParFX Ultra pairs ultra-high output and exceptional uniformity with a spectrum matched to your crop, across a family of four products on one form factor.
Engineered spectrum, every product
Fixed engineered recipes across the family, or dynamic 2-, 3-, or 4-channel tuning on the Ultra Max. Spectrum matched to your crop and stage.
Batwing distribution
Medium-wide and ultra-wide lens options deliver exceptional uniformity, so you can space fixtures wider and use fewer per growing area.
Plug-and-play platform
An integrated driver and standard horticultural power connectors make installation simple. Compatible with all dimming systems generating a 0-10 volt signal.

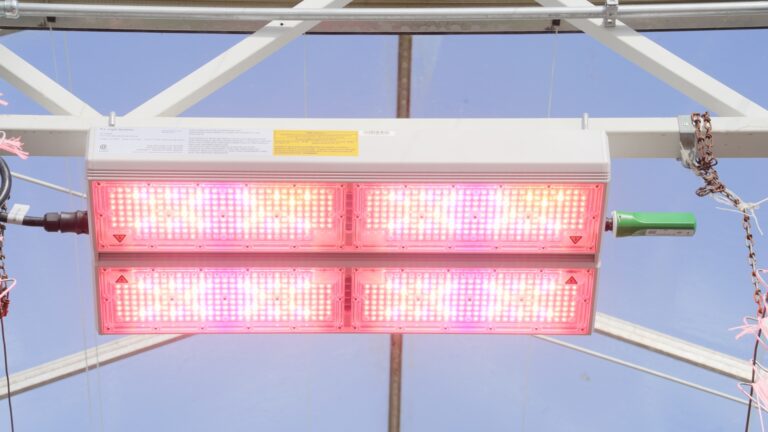

MeshIQ wireless compatible
Pair with the MeshIQ platform for zonal wireless control, compatible with Climate Control Computers running the Horti Lighting Protocol. No new control cabling to run.
Four products, one form factor
Same form factor across the family; output and configurability step up with each product. Pick the product that matches how your facility runs, or share a direct link to it with your sales manager.
Ultra Lite
Single-channel with a fixed engineered recipe. The lowest capex for greenhouses running one year-round recipe.
Best for Single-stage growing areas, propagation, established-recipe operations
Spec sheet (PDF)| Channels | 1 |
|---|---|
| Rated main voltage | 208-240V / 480V |
| Max power | 600W |
| Peak photon flux | 2185 µmol/s |
| Peak efficacy | 3.6 µmol/J |
| Spectrum | Fixed engineered recipe |
| Dimensions | 19.48 x 12.05 x 3.66 in (495 x 306 x 93 mm) |
| Weight | 20.7 lb (9.4 kg) |

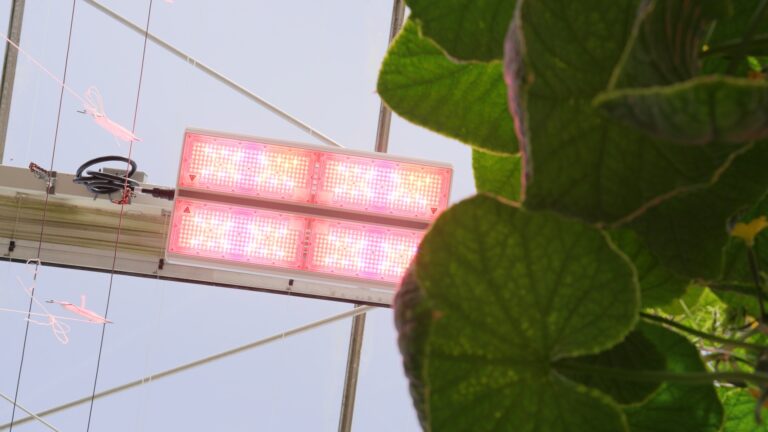

Ultra
One or two channels with a fixed engineered recipe. The most common choice for greenhouse vegetables and floriculture.
Best for Vine crops, floriculture, mid-DLI operations
Spec sheet (PDF)| Channels | 1 or 2 |
|---|---|
| Rated main voltage | 277-480V (1CH), 277-400V (2CH) |
| Max power | 750W (channel 1) |
| Peak photon flux | 2929 µmol/s |
| Peak efficacy | 3.8 µmol/J |
| Spectrum | Fixed engineered recipe |
| Dimensions | 24.41 x 11.65 x 3.58 in (620 x 296 x 91 mm) |
| Weight | 22.1 lb (10 kg) |
Ultra Plus
One or two channels at higher output, with headroom for higher-DLI canopies and longer photoperiods.
Best for High-DLI vegetables, fruiting crops, supplemental in cold climates
Spec sheet (PDF)| Channels | 1 or 2 |
|---|---|
| Rated main voltage | 277-400V |
| Max power | 1040W (channel 1) |
| Peak photon flux | 4019 µmol/s |
| Peak efficacy | 3.9 µmol/J |
| Spectrum | Fixed engineered recipe |
| Dimensions | 22.91 x 13.98 x 4.13 in (582 x 355 x 105 mm) |
| Weight | 28.7 lb (13 kg) |
Ultra Max
Two, three, or four channels at the highest output in the family. Only the four-channel Ultra Max is fully dynamic and tunable across growth stages.
Best for Multi-stage growing areas, R&D, mixed-crop facilities, MeshIQ-controlled operations
Spec sheet (PDF)| Channels | 2, 3, or 4 (4-channel fully dynamic) |
|---|---|
| Rated main voltage | 277-400V |
| Max power | up to 1200W (channel 1) |
| Peak photon flux | 5180 µmol/s |
| Peak efficacy | 4.26 µmol/J |
| Spectrum | Dynamic, up to 4 independent channels |
| Dimensions | 28.43 x 15.16 x 4.57 in (722 x 385 x 116 mm) |
| Weight | 37.5 lb (17 kg) |
Engineered spectrum, every product
Pick from engineered fixed recipes across the family, or dynamic 2-, 3-, or 4-channel tuning on the Ultra Max, with independent red, far-red, white, and blue channels you can adjust across growth stages. Spectrum is matched to your crop and stage, not a one-size-fits-all luminaire.

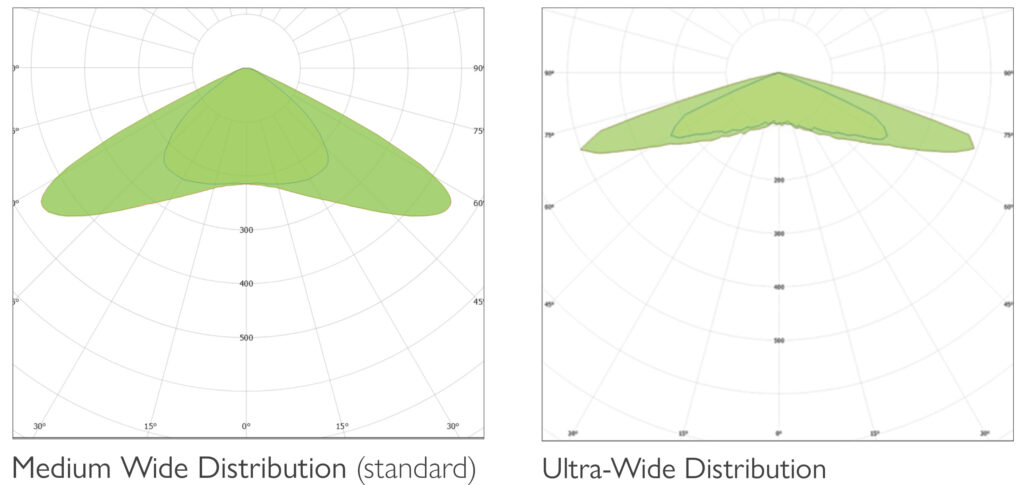

Batwing distribution
The ParFX Ultra lens is optically engineered for a medium-wide (standard) or ultra-wide batwing distribution, delivering exceptional uniformity. A wider distribution lets you space fixtures farther apart and use fewer per growing area.

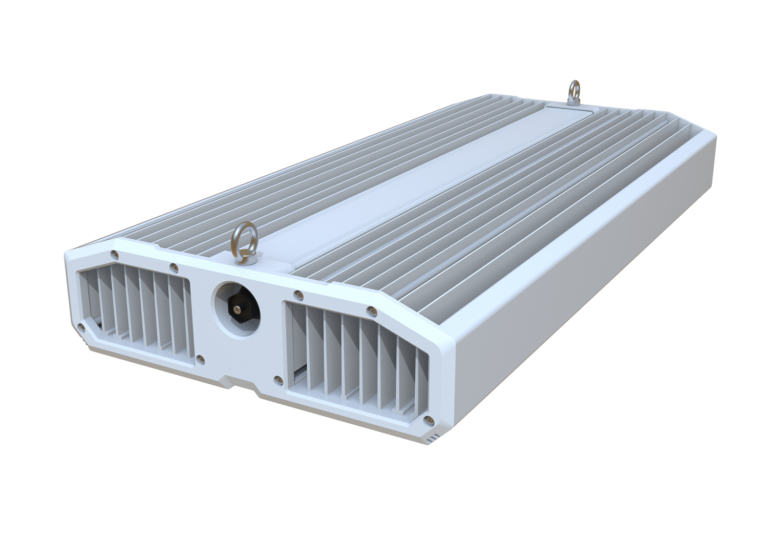

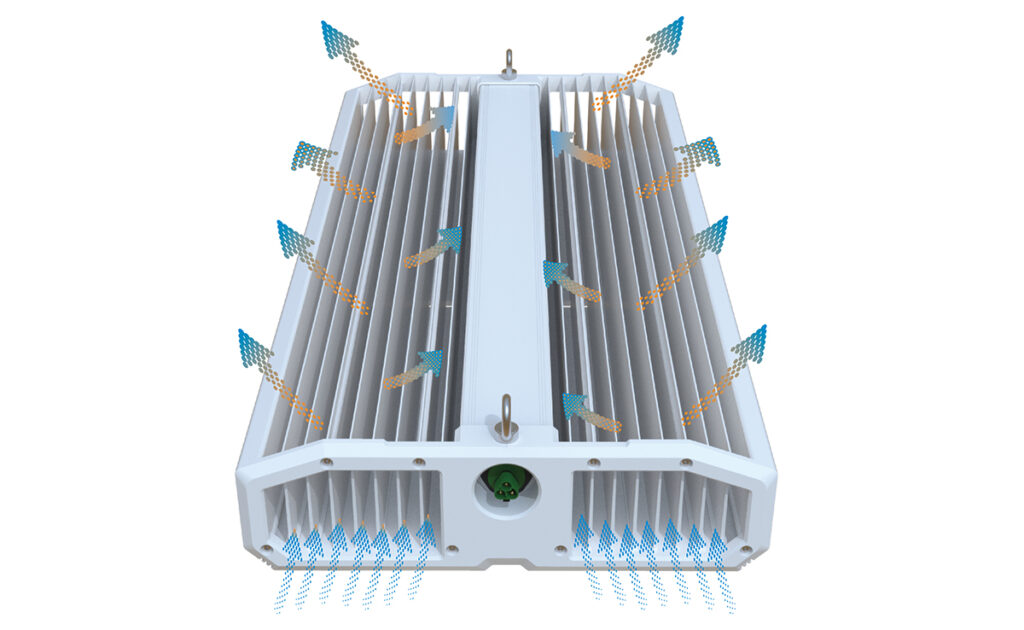

Engineered thermal management
Convection currents draw cool air into the slots along either end of the luminaire. The air passes through integrated aluminum fins that span its length, drawing heat away from the LEDs and the electronics compartment for optimal passive thermal management.

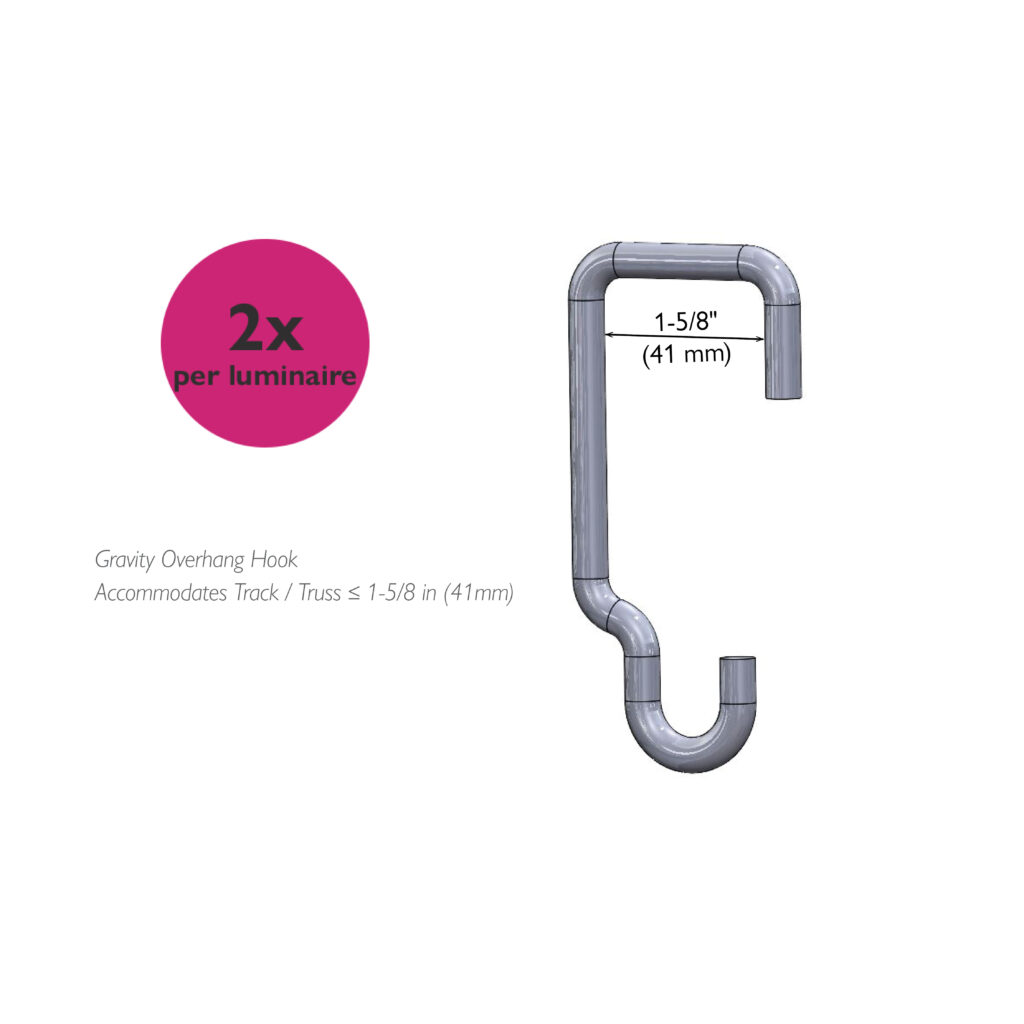

Mounting options
An integrated driver, standard horticultural power connectors, and intuitive mounting, including the availability of custom bracket mounting solutions, allow for easy installation in both new and retrofit applications, in full LED or hybrid configurations. The ParFX Ultra mounts to the truss you already have; your installer selects the bracket that fits your greenhouse structure or indoor racking.
Compare the products side by side
The tabs above give each product in full; this is the whole family at a glance.
| Specification | Ultra Lite | Ultra | Ultra Plus | Ultra Max |
|---|---|---|---|---|
| Channels | 1 | 1 to 2 | 1 to 2 | 2 to 4 |
| Max power | 600W | 750W | 1040W | up to 1200W |
| Peak photon flux | 2185 µmol/s | 2929 µmol/s | 4019 µmol/s | 5180 µmol/s |
| Peak efficacy | 3.6 µmol/J | 3.8 µmol/J | 3.9 µmol/J | 4.26 µmol/J |
| Spectrum | Fixed recipe | Fixed recipe | Fixed recipe | Dynamic, 4-channel |
| Length | 19.48 in | 24.41 in | 22.91 in | 28.43 in |
| Weight | 20.7 lb | 22.1 lb | 28.7 lb | 37.5 lb |
Peak photon flux and efficacy are the highest published values per product (R95:B5 / R90:W5:B5 recipes, measured 350 to 800 nm); actual output depends on the selected recipe and voltage. Only the 4-channel Ultra Max is fully dynamic and tunable. Values accurate to plus or minus 10 percent. Full per-channel specifications are in each product's spec sheet.
ParFX Ultra technical specifications
Electrical and lifetime
- Rated main voltage
- 208 to 480V (by product)
- Power factor
- > 0.97
- Input frequency
- 50 / 60 Hz
- Light source
- LED
- Dimming
- 0-10V sourcing or digital dim to off
- Lifetime
- L90B5 at 50,000 hours
Voltage range varies by product: Ultra Lite 208-240V / 480V, Ultra 277-480V (single channel) or 277-400V, Ultra Plus and Ultra Max 277-400V. Single-channel models dim over 0-10V or digital; multi-channel models use digital dim to off. The fixture is a 0-10V sourcing supply, compatible with most major environmental control systems. Digital dimming is based on the RS485 standard and is available for MeshIQ-enabled models only. L90B5 at 50,000 hours means no more than 5 percent of luminaires are expected to fall below 90 percent PAR maintenance within 50,000 hours. Values accurate to plus or minus 10 percent.
Environment, certification, and warranty
- Max ambient temperature
- 35 °C
- IP rating
- IP66
- Certifications
- DLC Hort listed, CSA certified
- Warranty
- Limited 5-year warranty from the date of invoice

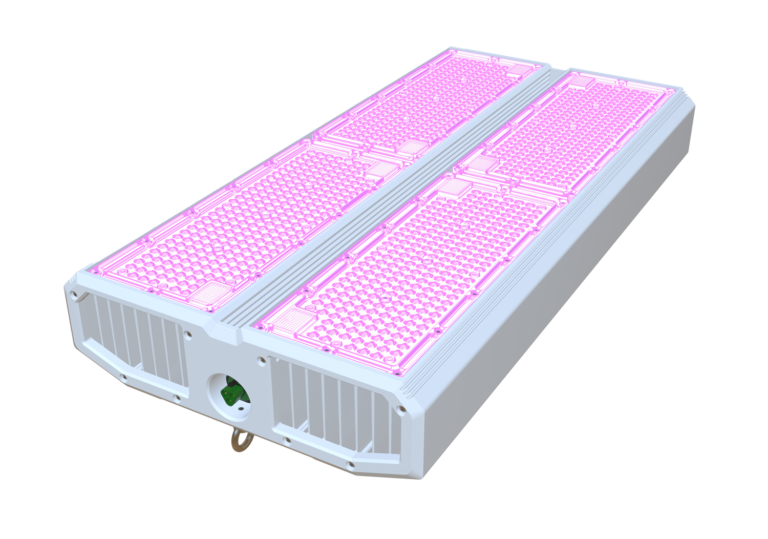

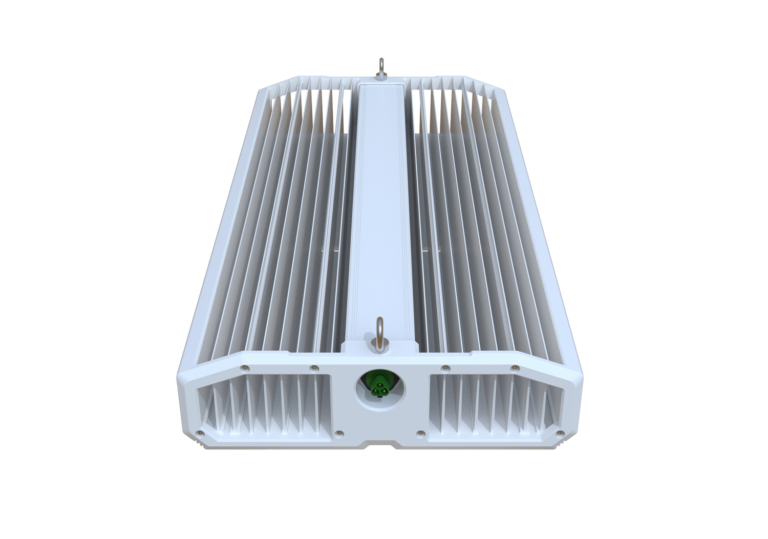

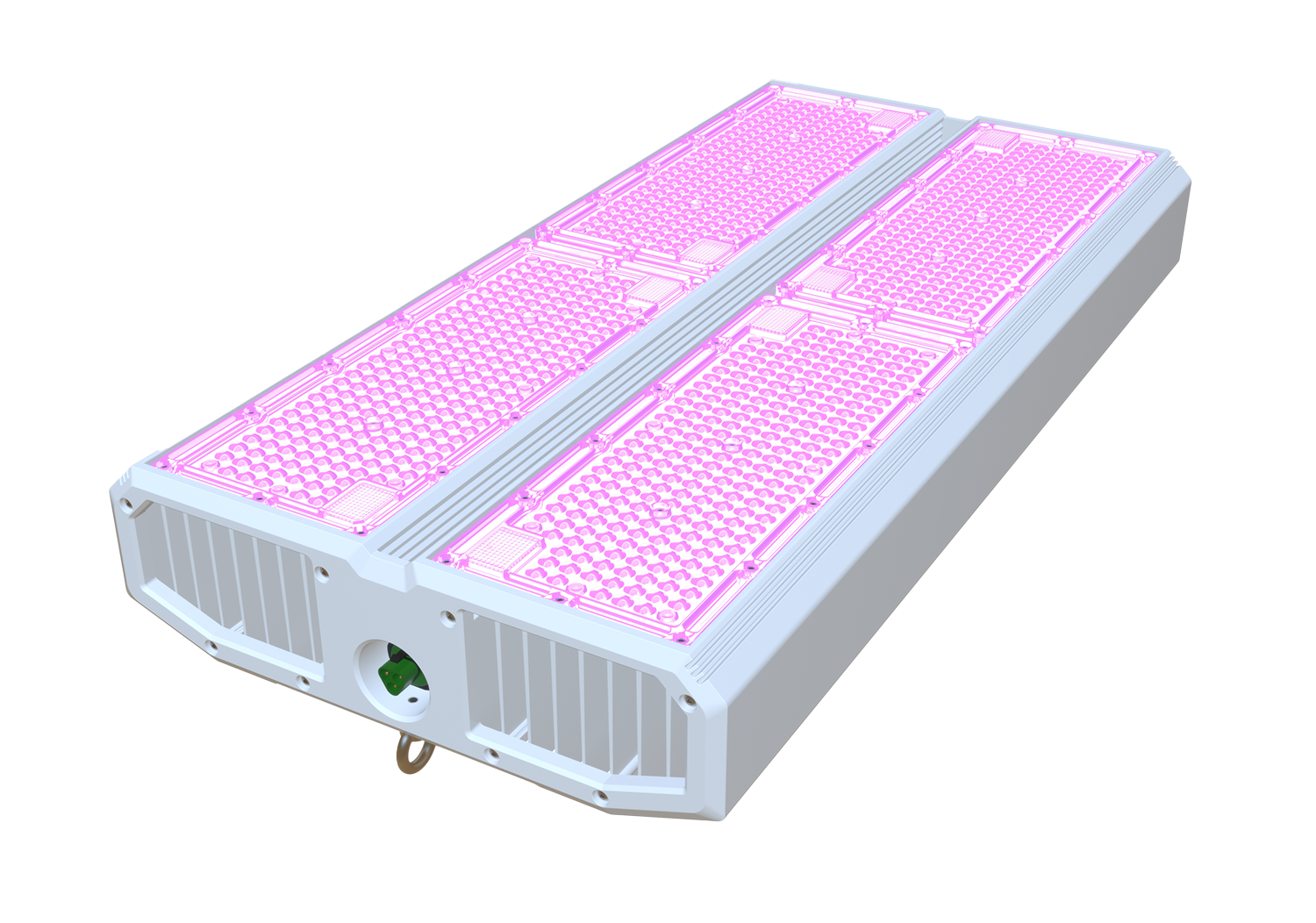

Close-up on the hardware

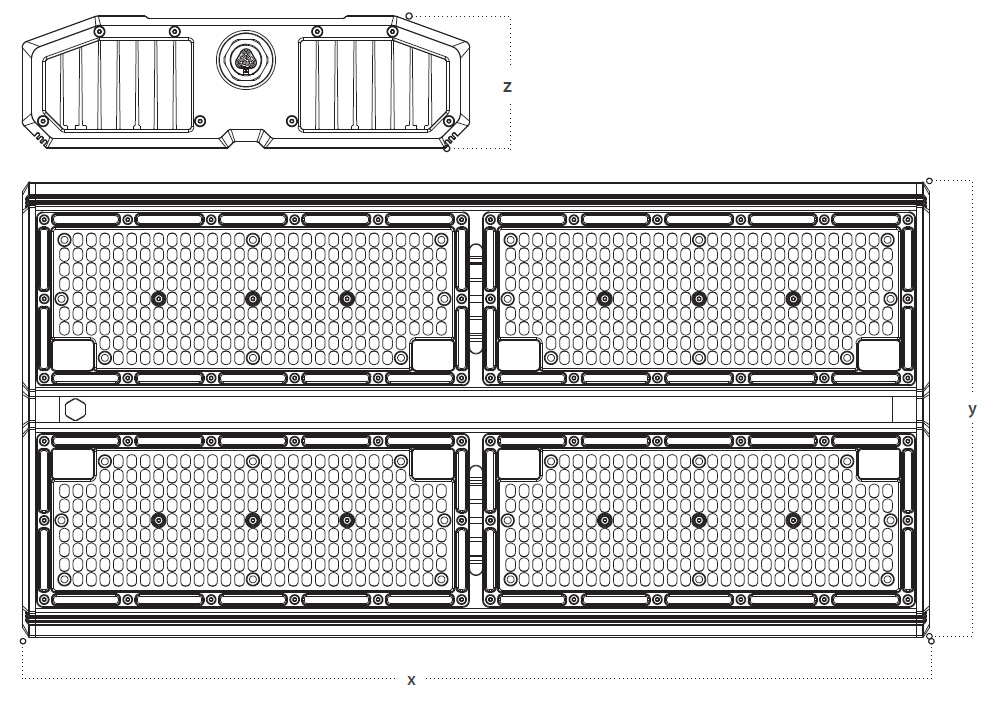

ParFX Ultra dimensions
Overall dimensions vary by product, as shown in the drawing below and in each product’s tab above. Full measurements are in every spec sheet.

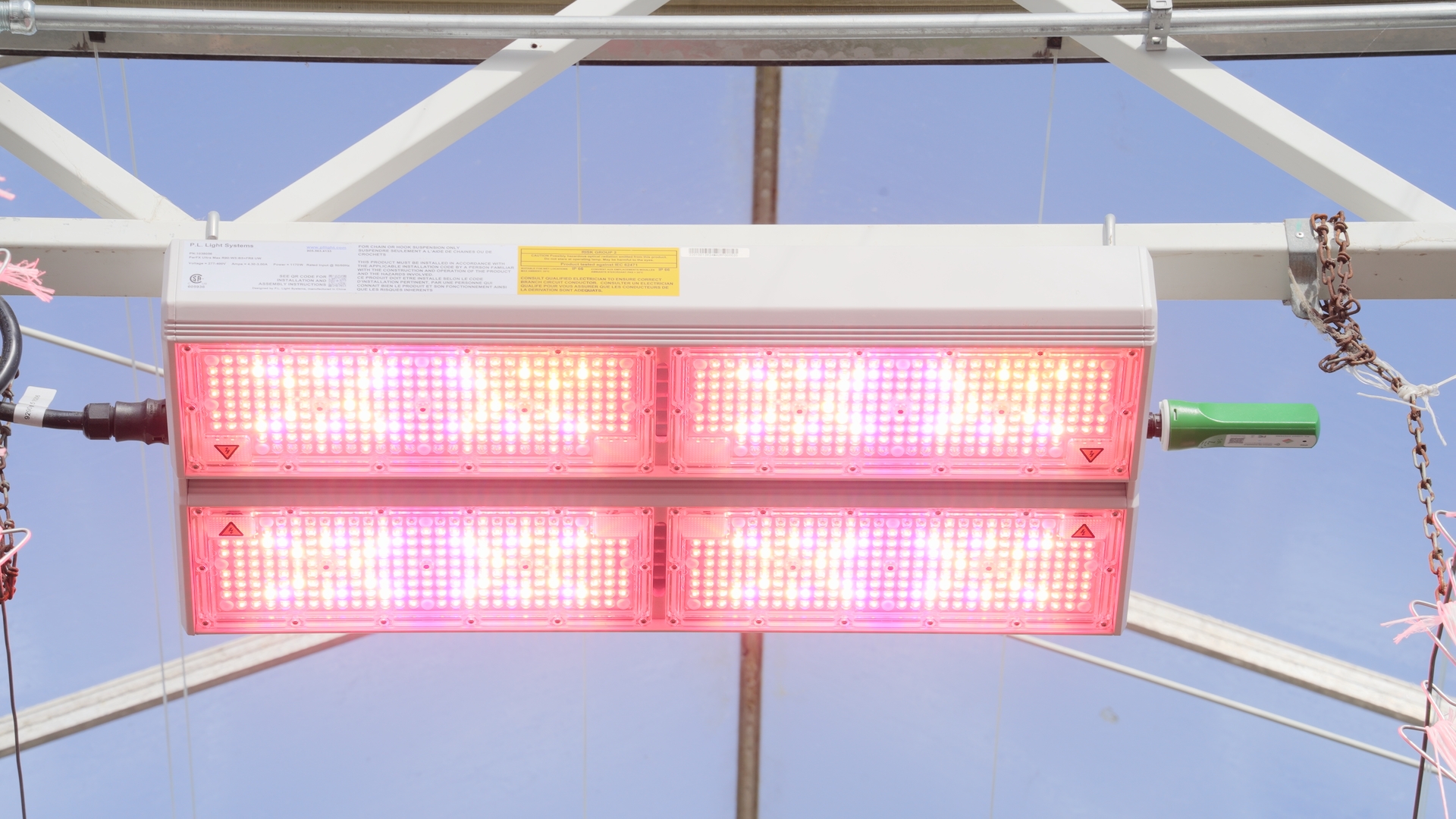

Zonal wireless control, no new cabling
Pair any ParFX Ultra with the MeshIQ platform for zonal wireless dimming and scheduling across your facility, with no new control wiring to run.
Spec sheets and manuals
ParFX Ultra questions, answered
What is the difference between the ParFX Ultra products?
All four products share one form factor. Ultra Lite is single-channel at 600W for the lowest capex; Ultra (750W) and Ultra Plus (1040W) step up output for higher-DLI crops; Ultra Max is the highest output in the family (up to 1200W on channel 1) and the only one available as a fully dynamic 4-channel fixture.
Which ParFX Ultra is tunable?
Only the 4-channel Ultra Max is fully dynamic and tunable across growth stages, with independent red, far-red, white, and blue channels. Every other product ships with a fixed engineered recipe matched to your crop; custom recipes are available on request.
What lens options are available?
The lens is optically engineered for a medium-wide (standard) or ultra-wide batwing distribution. The wider option lets you space fixtures farther apart and use fewer per growing area while keeping uniformity high.
Can the ParFX Ultra be controlled wirelessly?
Yes. Any ParFX Ultra pairs with the MeshIQ wireless platform for zonal dimming and scheduling with no new control cabling. Fixtures also dim over 0-10V (single channel) or digital dim to off (multi-channel).
We engineer the plan before we quote the fixtures
Tell us your crop, structure, and targets. Your regional sales manager returns a photometric plan with fixture layout, connected load, and an energy estimate.
