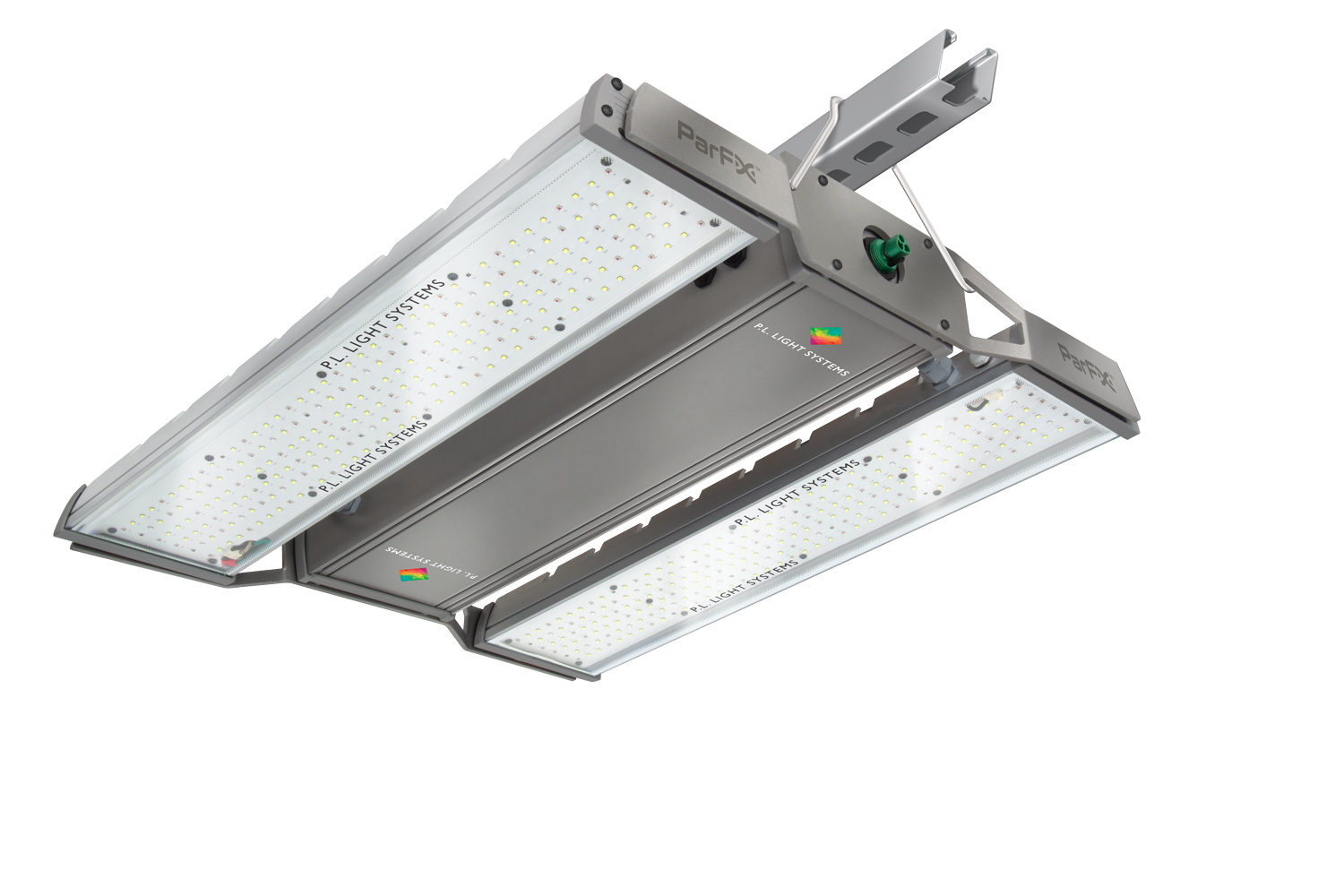

The TriPlaneTM Linear leverages the best of both LED and HID technologies—high light output, controlled distribution, optimized efficiencies and exceptional thermal management. Engineered to deliver multiple mounting configurations and distribution angles, the TriPlane Linear offers the ideal combination of form and function in any CEA application.
Engineered for optimal thermal management.
Multiple distribution and spectral options.
Optimum performance and energy savings.

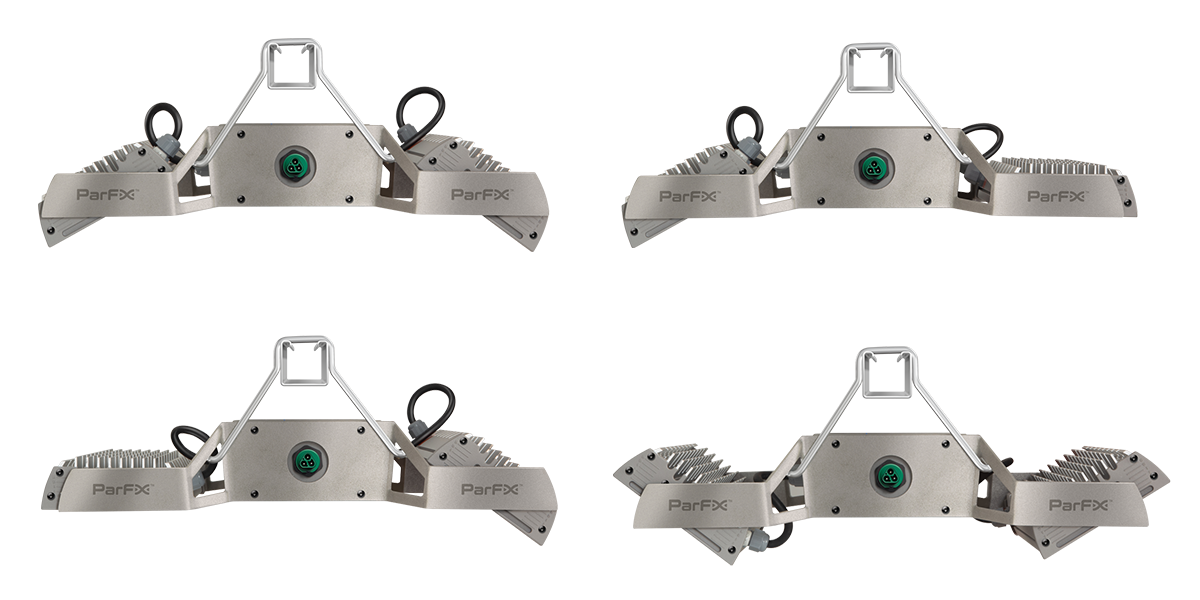

Simple plug-and-play platform.Designed for maximum flexibility, the TriPlane Linear offers both Linear and SQ mounting options to deliver the ideal form factor in any application. The LED modules can be field-adjusted independently in precise increments in either direction—allowing for highly customized light distribution, depending on the application.
The TriPlane Linear is thermally and mechanically engineered for optimal thermal management—maximizing the lifetime of the luminaire and reducing heat stress on the plants.

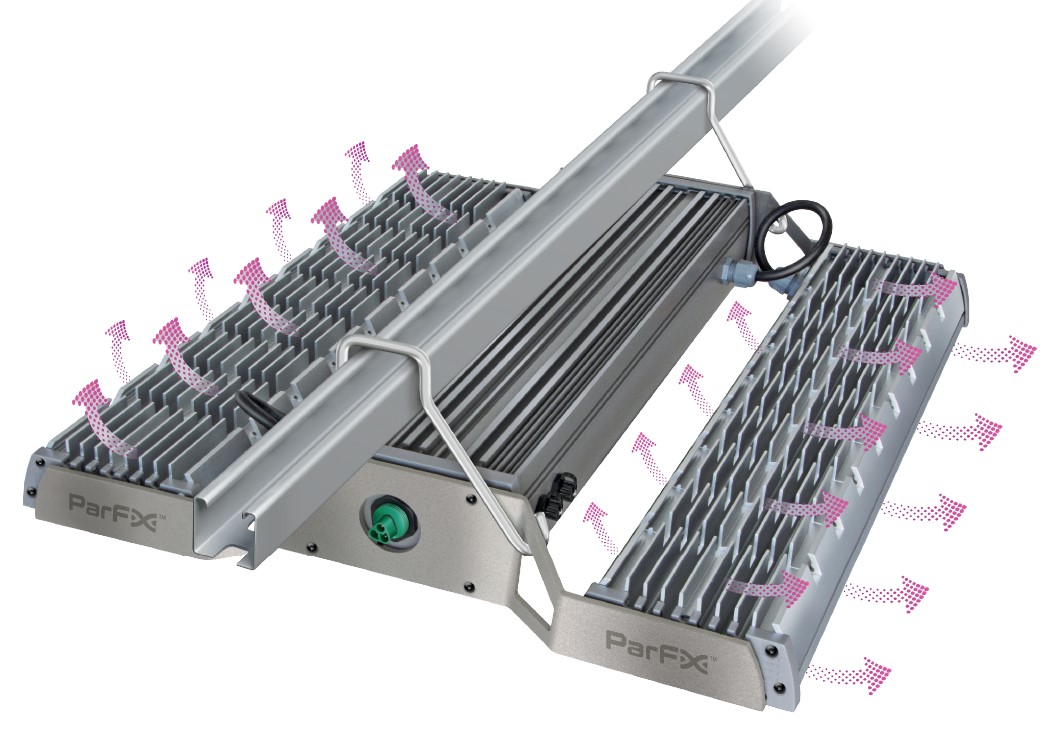

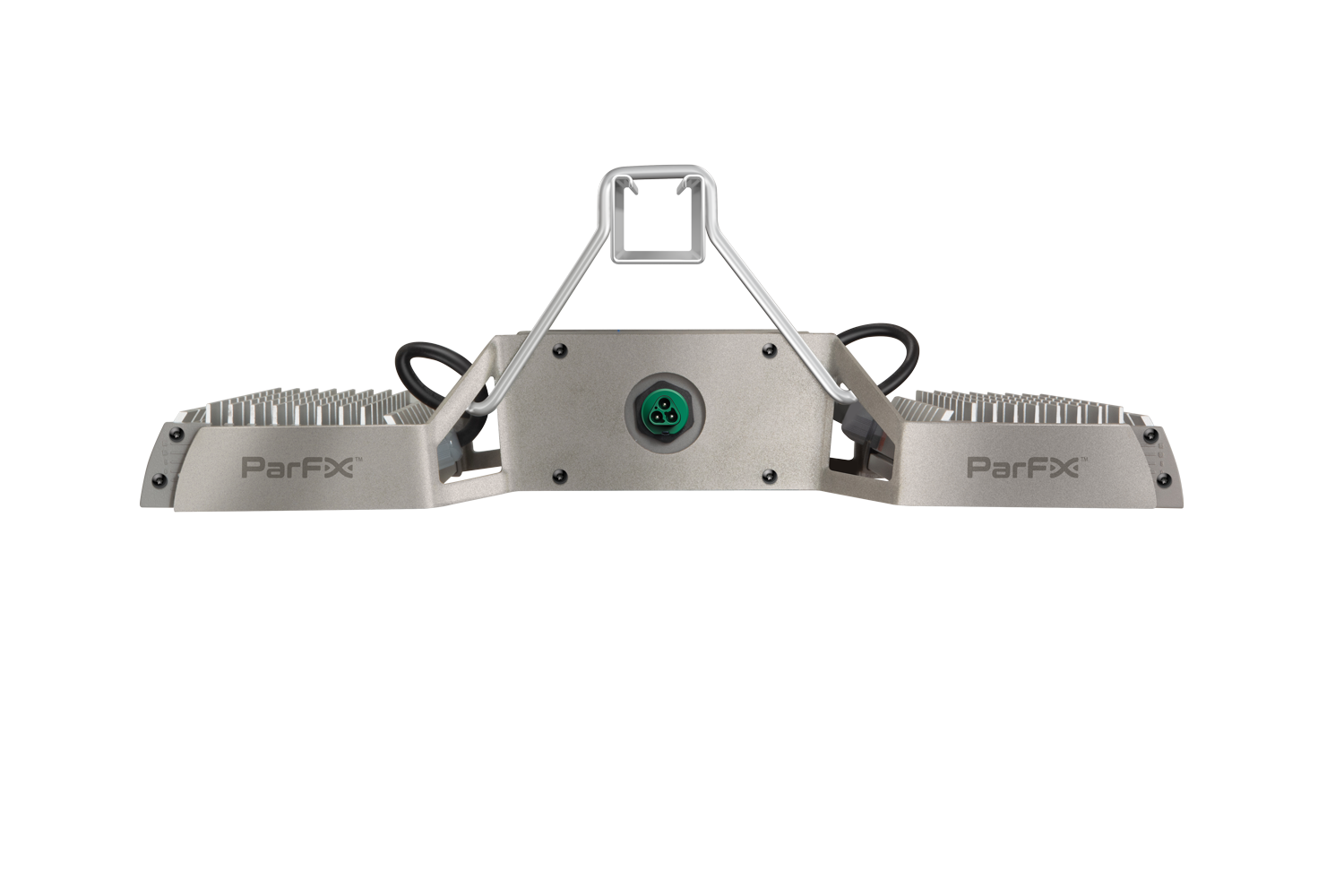

The integrated fins on the top of the aluminum LED modules are engineered to dissipate heat through conduction for optimal passive thermal management. The integrated driver is housed in an aluminum enclosure that is separate from the two LED modules to allow for maximum airflow around the electronics compartment—further allowing for passive cooling.

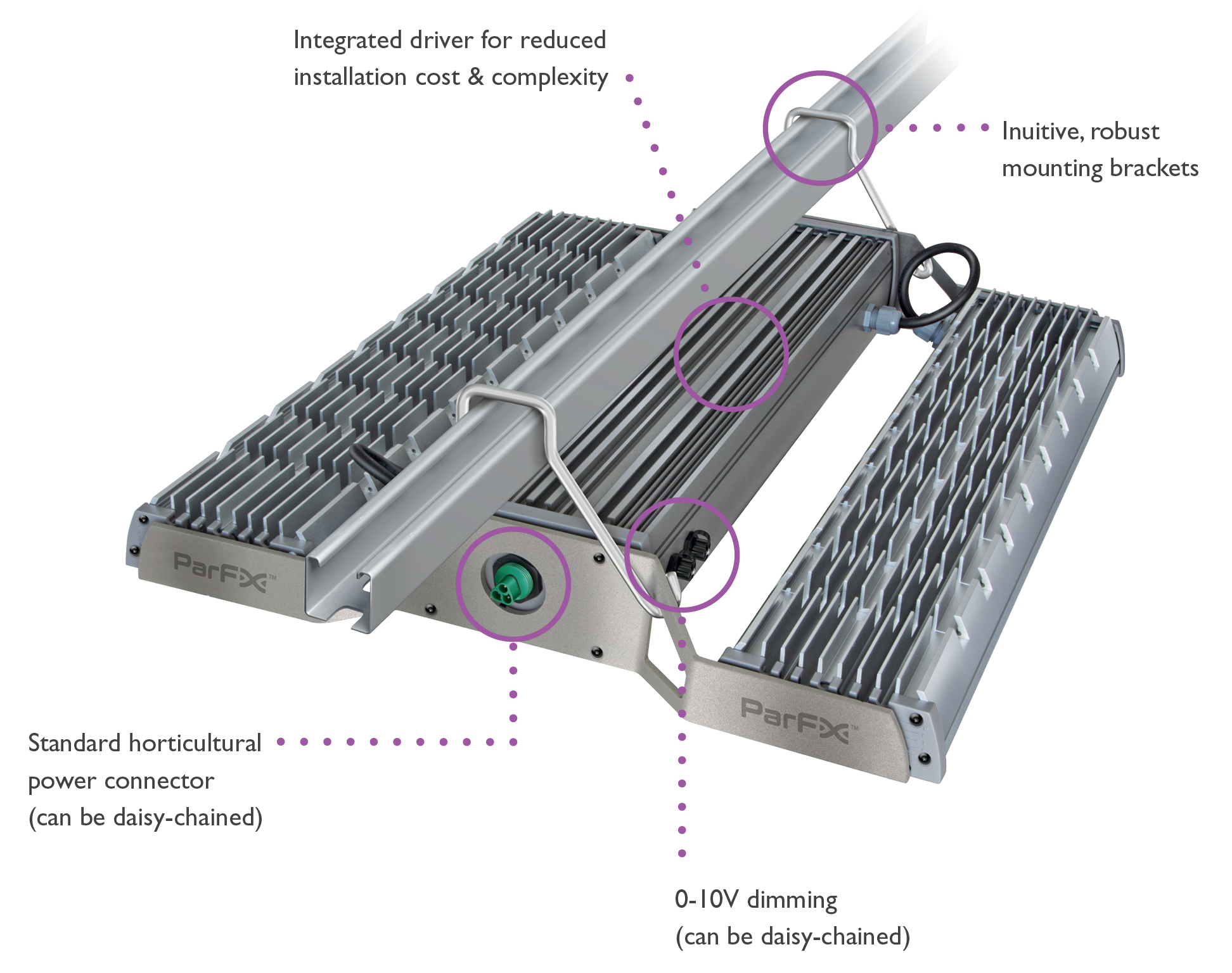

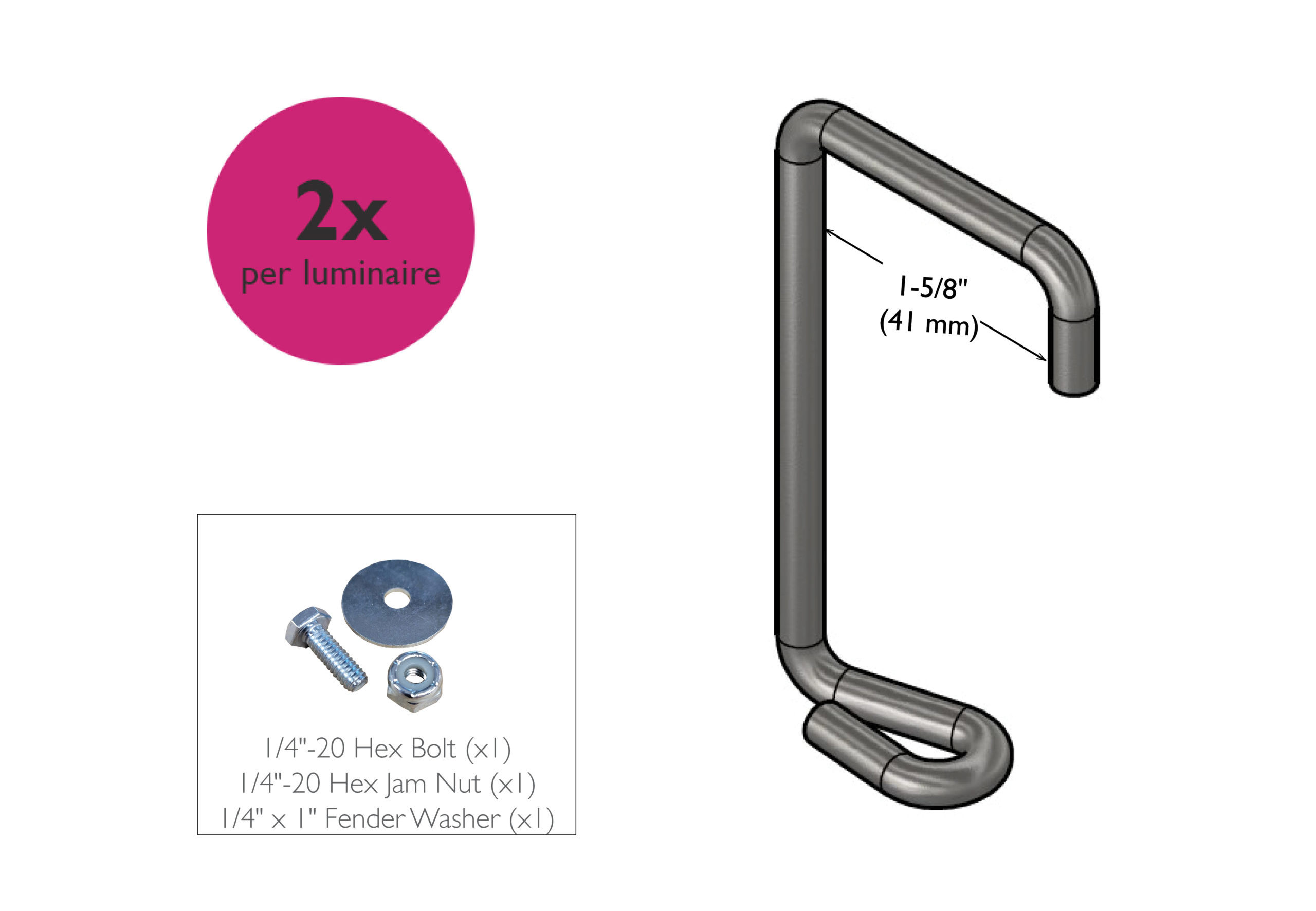

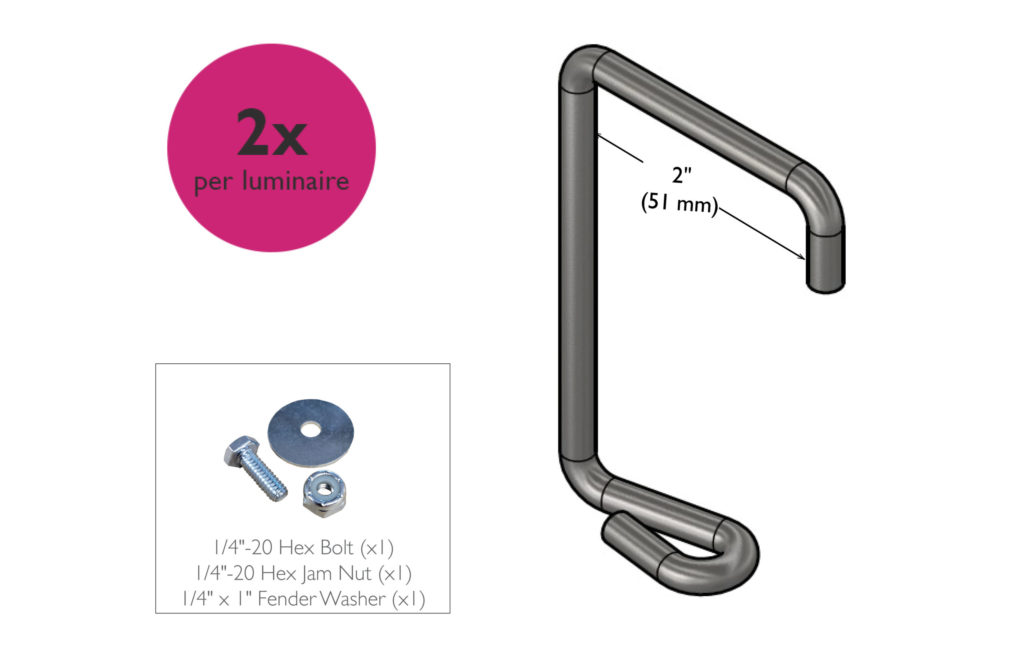

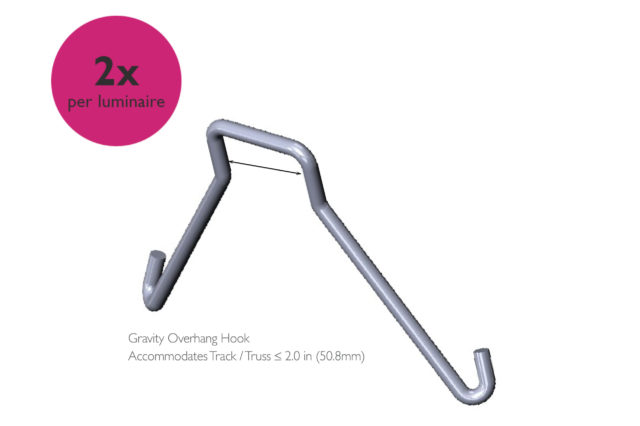

A standard horticultural power connector—along with intuitive, toolless mounting brackets—allows for an easy plug-and-play retrofit of existing HID lighting installations.
The ability to daisy-chain both the power and 0-10V control, enables reduced installation cost and complexity.
Technical Specifications† |
|||||||
| Rated Main Voltage | 208-480V | ||||||
| Amperage | 208V | 240V | 277V | 347V | 400V | 480V |
|
| RWMB HO (single-channel) | 3.05 | 2.64 | 2.29 | 1.83 | 1.59 | 1.32 | |
| RWMB LO (single-channel) | 1.80 | 1.56 | 1.35 | 1.08 | 0.93 | 0.78 | |
| Daylight HO (single-channel) | 2.91 | 2.52 | 2.19 | 1.75 | 1.51 | 1.26 | |
| Daylight LO (single-channel) | 1.71 | 1.49 | 1.29 | 1.03 | 0.89 | 0.74 | |
| RWMB_FR HO (single-channel) | 3.18 | 2.76 | 2.39 | 1.91 | 1.65 | 1.38 | |
| RWMB_FR LO (single-channel) | 1.97 | 1.71 | 1.48 | 1.18 | 1.03 | 0.86 | |
| RWMB+FR HO (dual-channel) | 3.42 | 2.97 | 2.57 | 2.05 | 1.78 | 1.48 | |
| Power | RWMB | Daylight | RWMB_FR | RWMB+FR‡ | |||
| HO | 670.8W | 641.1W | 705.1W | 712.0 W | |||
| LO | 396.0W | 379.2W | 438.9W | N/A | |||
| Light Source | LED | ||||||
| Photon Efficacy (350-800nm): | RWMB‡ | Daylight‡ | RWMB_FR‡ | RWMB+FR‡ | |||
| HO | 3.1 μmol/J | 2.6 μmol/J | 3.1 μmol/J | 3.3 μmol/J | |||
| LO | 3.2 μmol/J | 2.5 μmol/J | 3.2 μmol/J | N/A | |||
| Photon Flux (350-800nm): | RWMB‡ | Daylight‡ | RWMB_FR‡ | RWMB+FR‡ | |||
| HO | 2080 μmol/s | 1651 μmol/s | 2209 μmol/s | 2313 μmol/s | |||
| LO | 1256 μmol/s | 964 μmol/s | 1424 μmol/s | N/A | |||
| Power Factor | > 0.97 | ||||||
| Input Frequency | 50/60Hz | ||||||
| Dimming | 0-10V (source*) | ||||||
| Ambient Operating Temperature | 40°C (max) | ||||||
| Lifetime | L90B5 at 50,000 hrs** | ||||||
†Accurate to ± 10% ‡CSA / DLC Pending (RWMB+FR only)
*The TriPlane Linear is designed as a 0-10V sourcing supply, and is compatible with most major environmental control systems that use 0-10V sinking protocols—including: Hoogendoorn, Priva, Argus Control Systems and Wadsworth Control Systems.
**Scientifically extrapolated calculation for Par Maintenance of light is L90B5 at 50,000hrs (this means that expected lifespan of LEDs is defined as ≤5% of luminaires can depreciate below the expected 90% PAR maintenance within 50,000 hours).
DIMENSIONS – LINEAR MOUNTING CONFIGURATION |
||||||
| LED Module | Driver Module (208-400V) | Driver Module (480V) | ||||
| x = length | 25.60 in. (650 mm) | 13.30 in. (338 mm) | 25.20 in. (640 mm) | |||
| y = width | excl. connectors | incl. connectors | excl. connectors | incl. connectors | excl. connectors | incl. connectors |
| 6.22 in. (158 mm) | 7.83 in. (199 mm) | 9.13 in. (232 mm) | 13.31 in. (338 mm) | 9.13 in. (232 mm) | 13.31 in. (338 mm) | |
| z = height | 3.82 in. (97 mm) | 3.55 in. (90 mm) | 3.55 in. (90 mm) | |||
| weight | 11.2 lb. (5.1 kg) | 6.8 lb. (3.1 kg) | 16.1 lb. (7.3 kg) | |||
DIMENSIONS – SQ MOUNTING CONFIGURATION |
|
| x = length | 26.14 in. (664 mm) |
| y = width | 22.80 in. (579 mm) |
| z = height | 3.81 in. (96.7 mm) |
| weight | 35 lb. (15.8 kg) |
The product is meant for use in climate controlled rooms. The product may be used in damp environments. The product may not be used in wet environments or outdoors. The LEDs function optimally when the ambient temperature is between 0 ~ 40 °Celsius.
Limited warranty for a period of five (5) years from date of invoice. Refer to relevant luminaire specification data sheet for expected LED lifetime data.
In the event that you are experiencing problems with your luminaire, please contact our customer service team to arrange for additional technical support or service repairs as required.

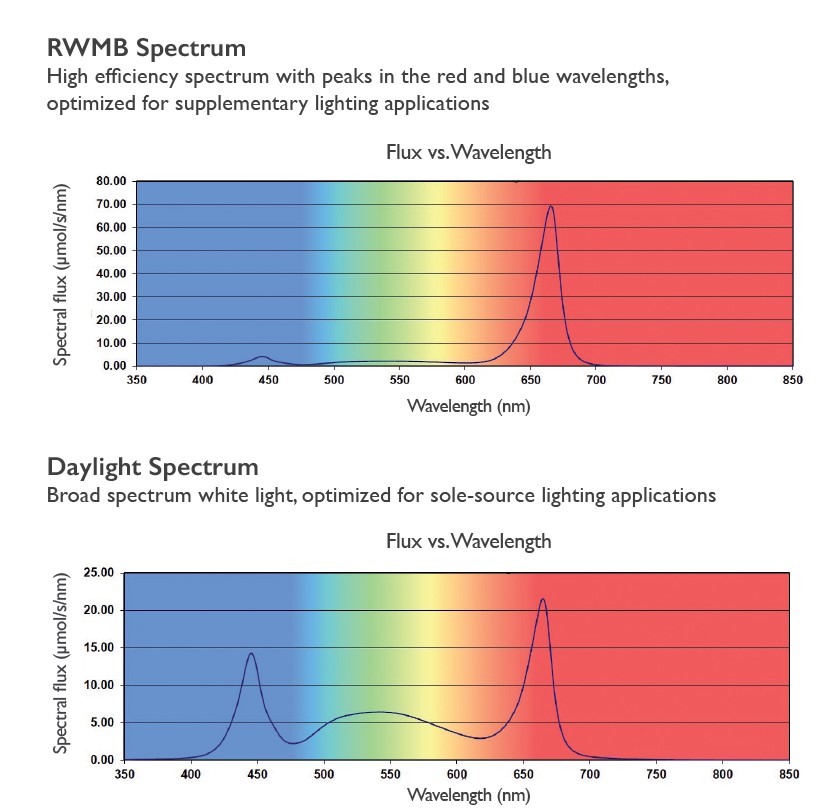

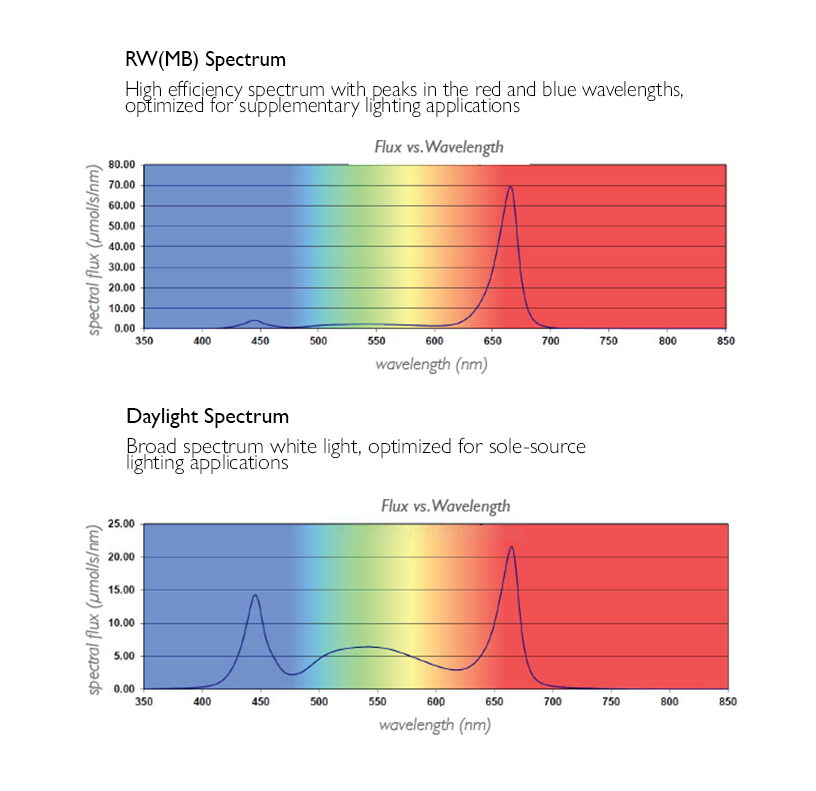

Designed to deliver optimum colour efficiencies, the TriPlane Linear is available in multiple spectral recipes which can be used in standalone LED applications, or in combination with HID luminaires for hybrid applications:
The TriP
lane Linear is available in high light output (HO) or low light output (LO) models—depending on the light levels required for your application. For retrofit applications, the HO model would typically serve as a replacement for a 1000W HID luminaire and the LO model as a replacement for a 400W or 600W HID luminaire.
Designed for maximum flexibility, the TriPlane Linear offers both Linear and SQ mounting configuration options to deliver the ideal form factor in any application.

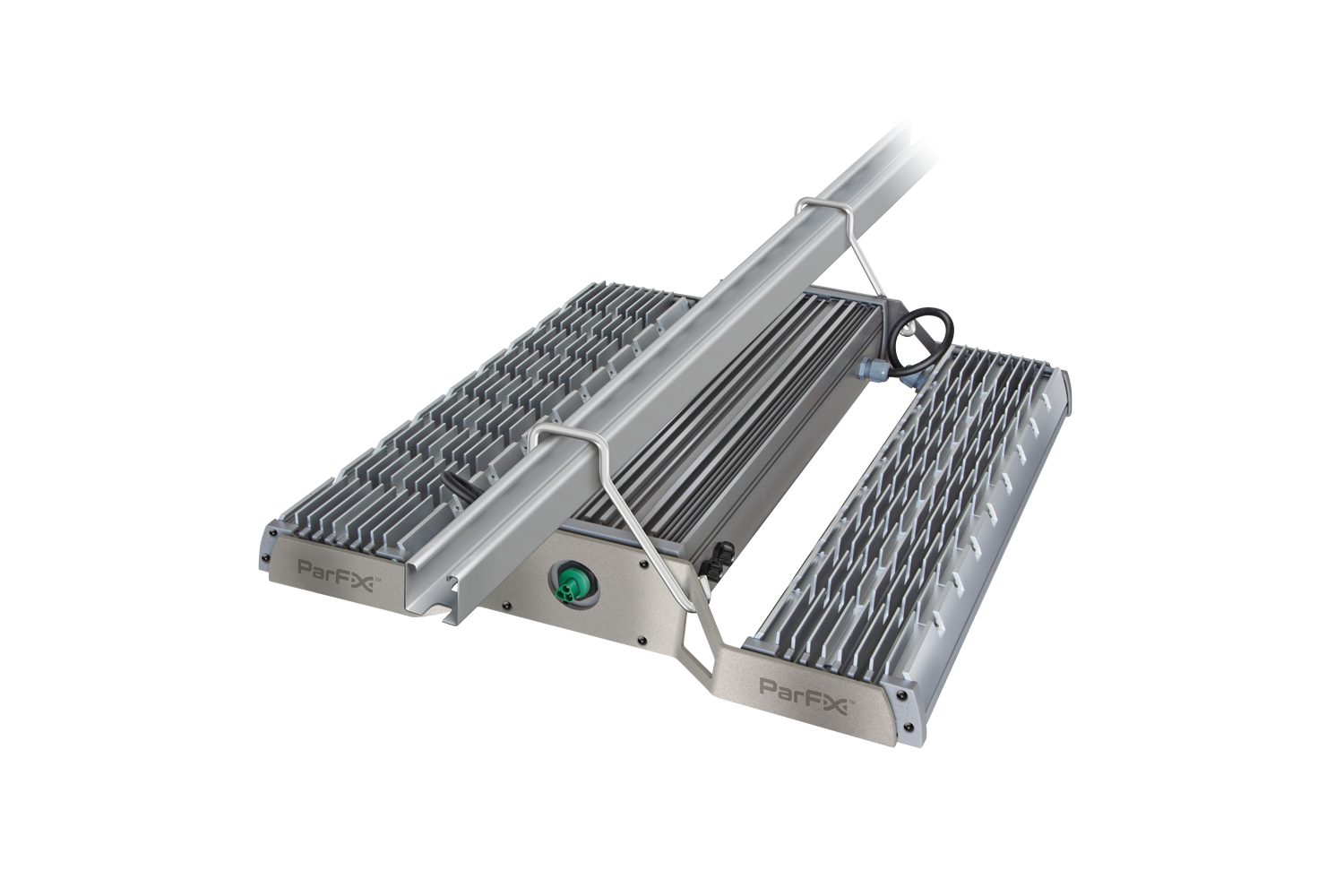

When mounted in linear configuration, the LED modules can be mounted back-to-back or spaced further apart, depending on the light level requirements. Driver modules can be mounted vertically or horizontally—either between or above the LED modules.
In the SQ mounting configuration, the LED modules are secured on either side of .the driver module with a factory-installed SQ mounting plate. TriPlane Linear luminaires in the SQ configuration, allow for an easy one-step installation process.
