BudBoost
Boosting yields from below
The BudBoost delivers optimal light intensity to the sub-canopy—ensuring uniform growth, development and yield quality throughout the plant.
The BudBoost delivers optimal light intensity to the sub-canopy—ensuring uniform growth, development and yield quality throughout the plant.

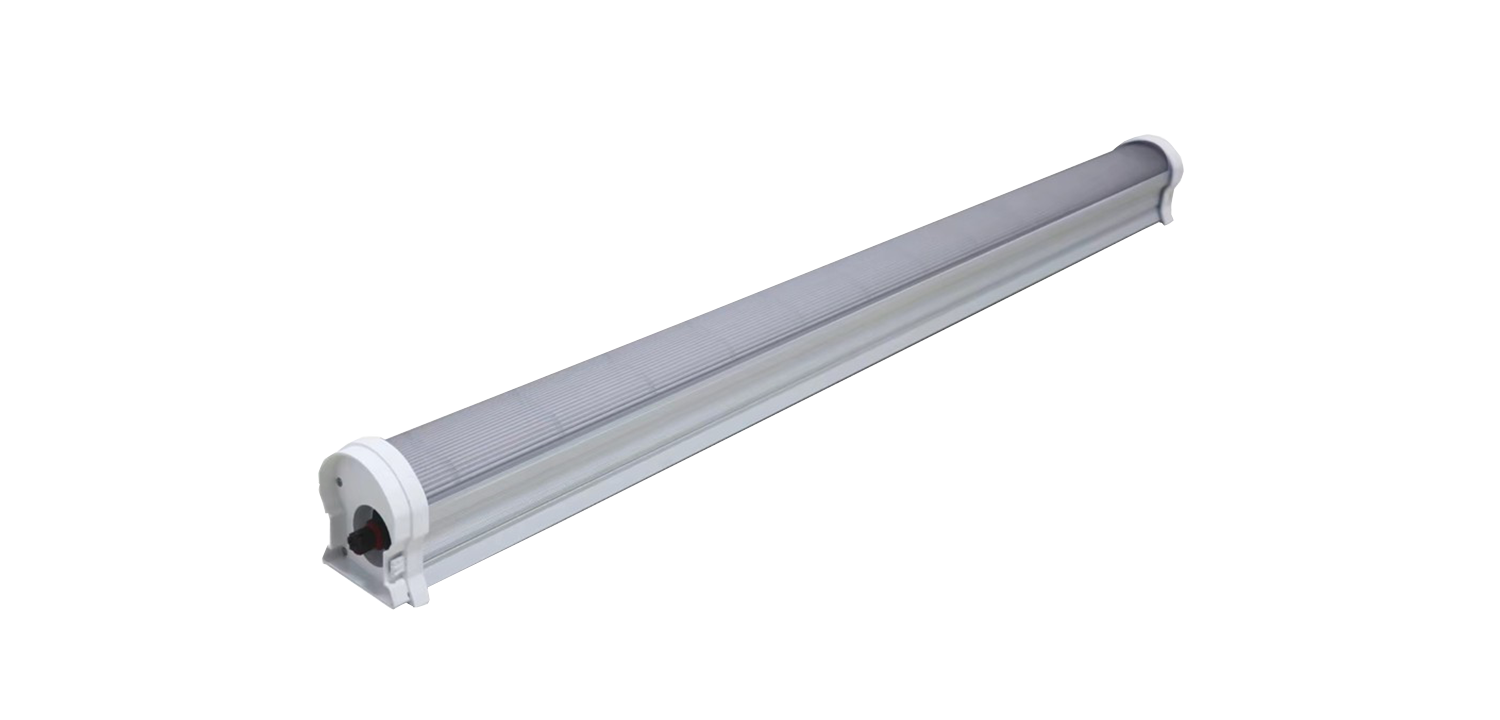

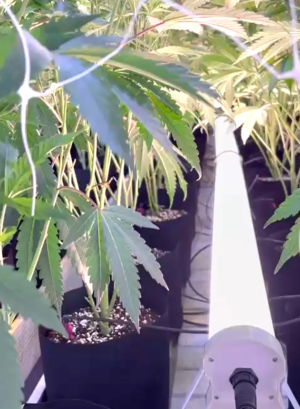

The BudBoost under-canopy lighting system is designed to deliver optimal PAR light intensity to the lower leaves and buds within dense and/or tall crops that cannot be reached by the existing top lights—ensuring uniform plant growth and development across all canopy layers.

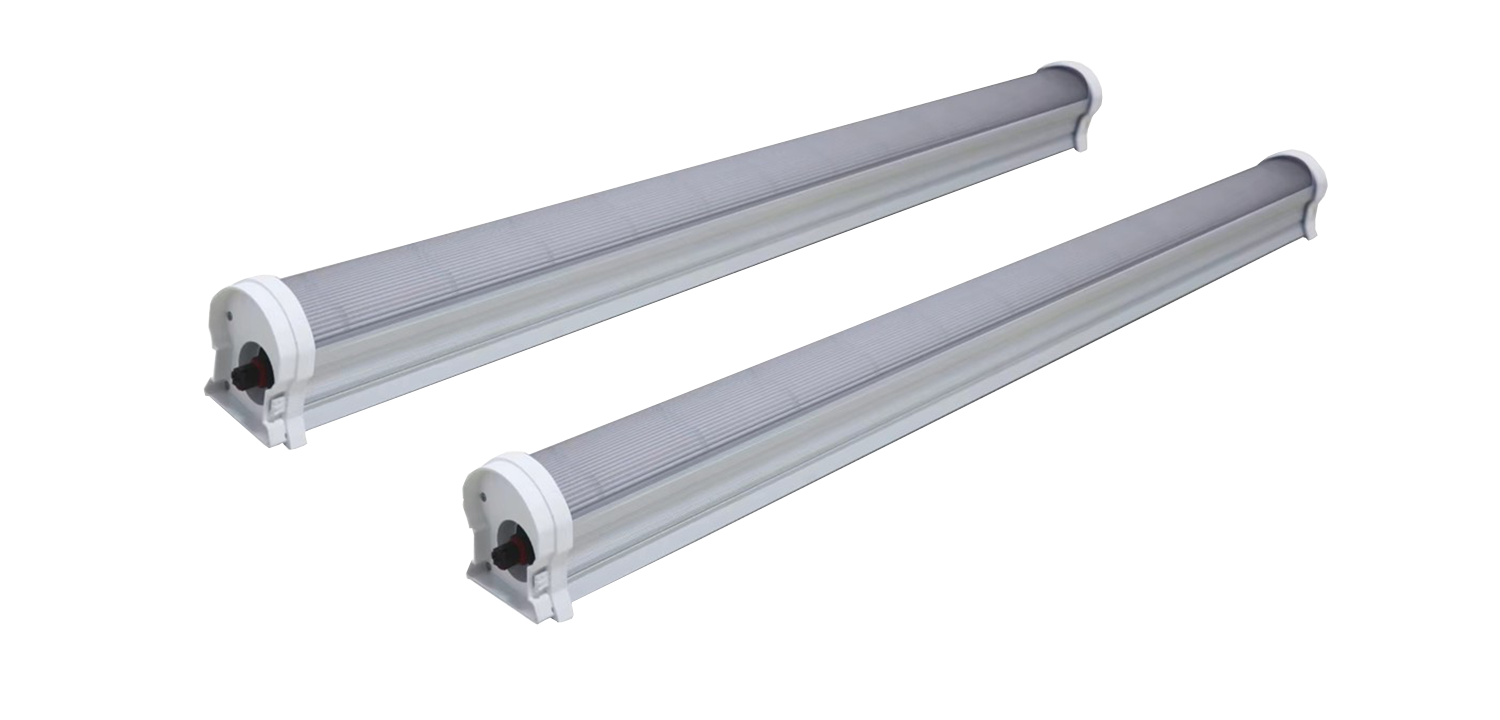

Engineered for a simple plug-and-play installation, the BudBoost features an integrated driver and seamless daisy-chain connectability. The IP66-rated modules are robustly constructed and easy to clean for hassle-free operation in harsh CEA environments.

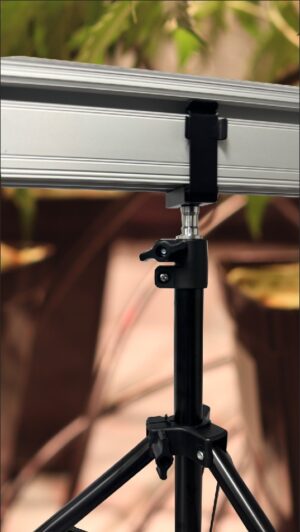

Height-adjustable mounting stands and optional connector cables, allow for flexible positioning to ensure the BudBoost under-canopy lighting system can be raised as the crop grows, and can also accommodate typical obstructions found on the grow room floor.
Technical Specifications†
|
|||||
Rated Main Voltage | 120-347VV | ||||
Amperage | 120V | 208V | 240V | 277V | 347V |
1.0 | 0.58 | 0.50 | 0.43 | 0.35 | |
Power | 120W | ||||
Light Source | LED | ||||
Photon Flux
(350-800nm) |
R33:W56:B11 | R61:W26:B13 | |||
354 μmol/s | 373 μmol/s | ||||
Photon Efficacy
(350-800nm) |
R33:W56:B11 | R61:W26:B13 | |||
2.9 μmol/J | 3.0 μmol/J | ||||
Power Factor | > 0.95 | ||||
Input Frequency | 50/60Hz | ||||
Environment | 40°C Max. Ambient Operating Temperature; Suitable for Wet Locations | ||||
Dimming | 0-10V Dim to Off | ||||
Lifetime (L90) | L90B5 at 36,000 hrs‡ |
†Accurate to ± 10% ‡Scientifically extrapolated calculation for Par Maintenance of light is L90B5 at 36,000hrs (this means that the expected lifespan of LEDs is defined as ≤5% of luminaires can depreciate below the expected 90% PAR maintenance within 36,000 hours). Limited warranty for a period of five (5) years. from the date of invoice

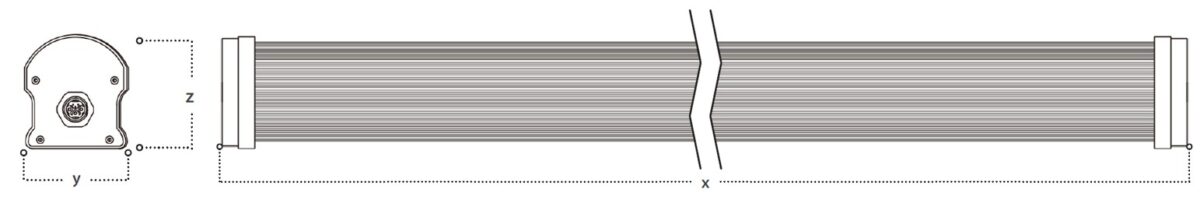

DIMENSIONS |
|
x = length | 44.59 in. (1133 mm) |
y = width | 3.55 in. (90 mm) |
z = height | 3.21 in. (82 mm) |
weight | 5.95 lb. (2.7 kg) |
The product is meant for use in climate controlled rooms. The product may be used in damp environments. The product may not be used in wet environments or outdoors. The LEDs function optimally when the ambient temperature is between 0 ~ 40 °Celsius.
Limited warranty for a period of 5 years from the date of invoice. Refer to the relevant luminaire specification data sheet for expected LED lifetime data.
In the event that you are experiencing problems with your product, please contact our customer service team to arrange for additional technical support or service repairs as required.

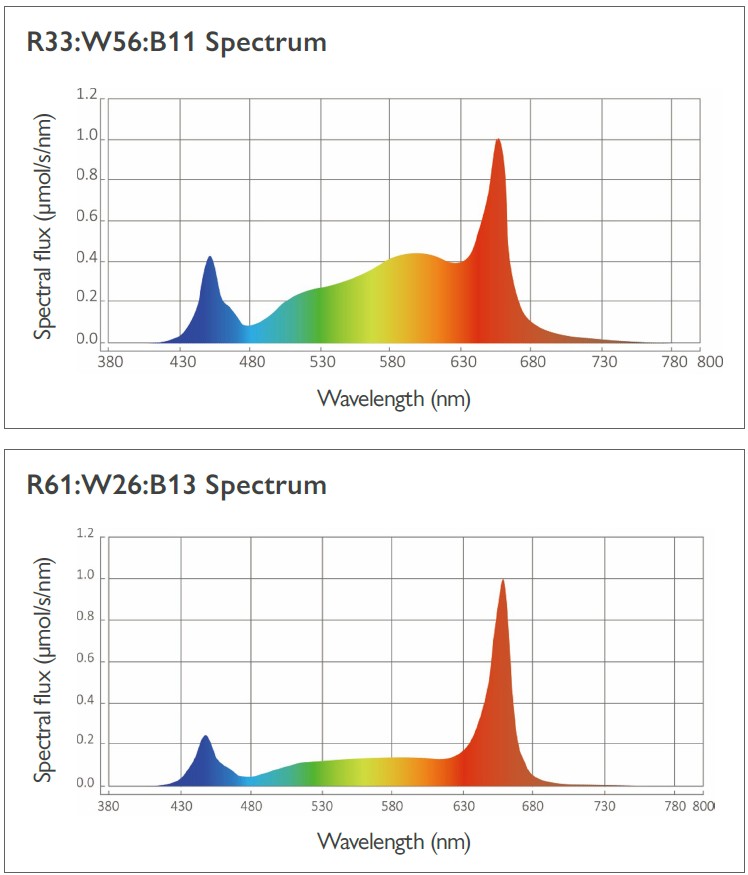

The BudBoost offers two spectral recipes designed for optimal efficiencies and to compliment the existing top lighting spectrum. The broad-spectrum R33:W56:B11 is a well-balanced recipe designed for use in all stages of crop development. The R61:W26:B13 recipe is optimized in the red wavelengths to boost flowering efficiency.
